Door Weatherstrip Replacement

Door Weatherstrip Replacement

Removal Procedure

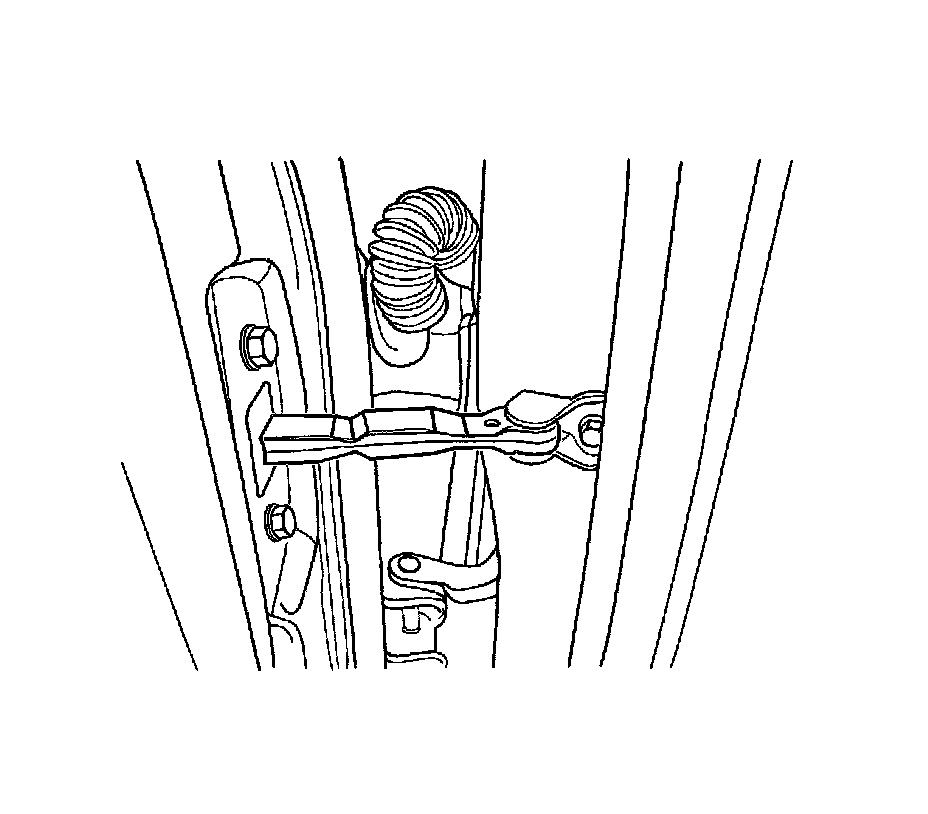

1. Remove the door hold-open link-to-body bolt and the door hold-open link.

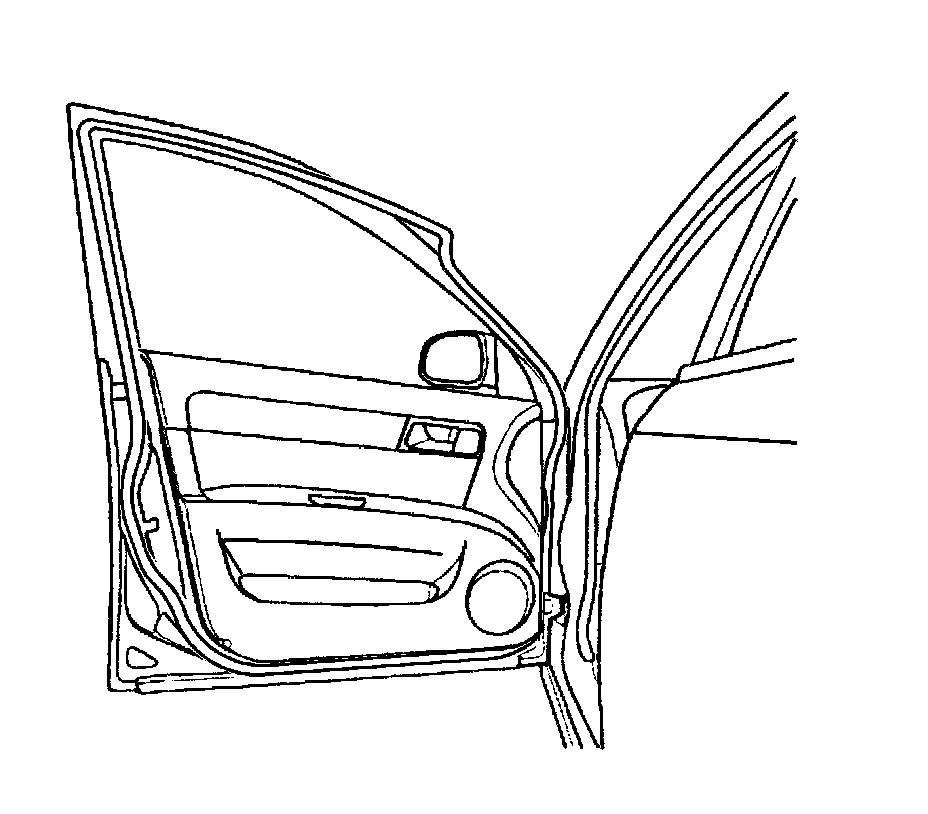

2. Remove the door weatherstrip

Installation Procedure




1. Install the door weatherstrip





Notice: Refer to Fastener Notice Fastener Notice.

2. Install the door hold-open link to the body with the bolt.

Tighten the door hold-open link-to-body bolt to 25 Nm (18 lb ft).
