Spoiler: Service and Repair

Rear Spoiler Replacement

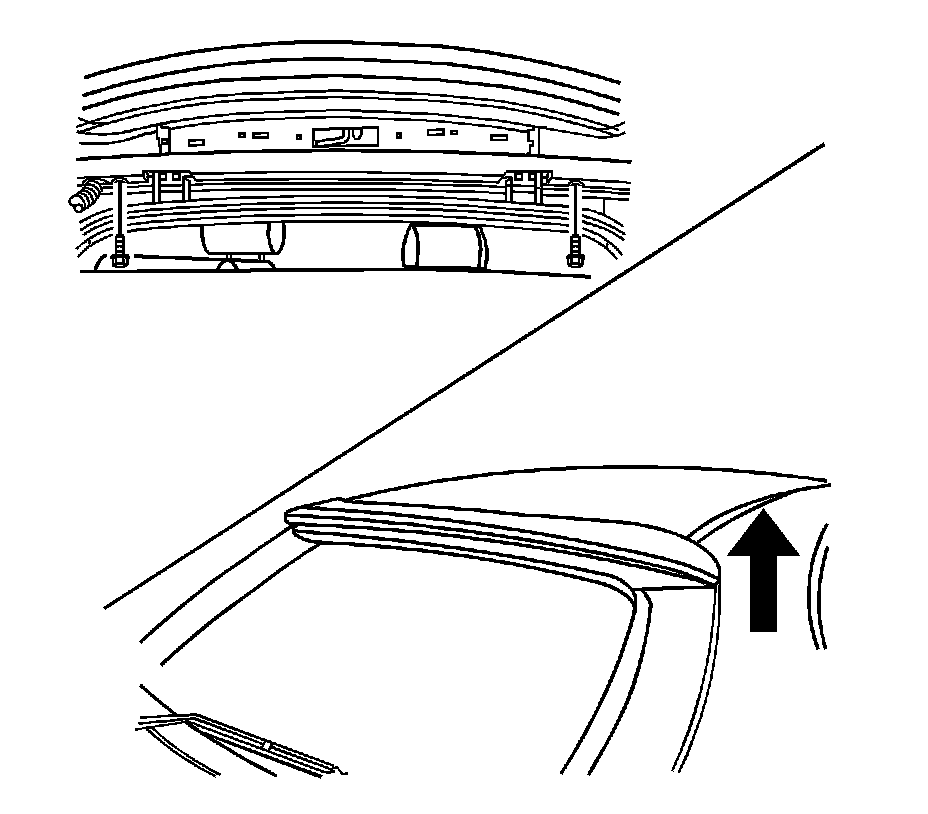

Removal Procedure




1. Open the rear hatch.
2. Remove the hatchback door upper garnish molding.
3. Remove the bolts from the rear spoiler.
4. Remove the spoiler from the rear hatch.

Installation Procedure




1. Install the rear hatch spoiler with the bolts.
2. Install the hatchback door upper garnish molding.
3. Close the rear hatch.
