Rear Seat Armrest Replacement

Rear Seat Armrest Replacement

Removal Procedure




1. Lower the rear seatbacks.

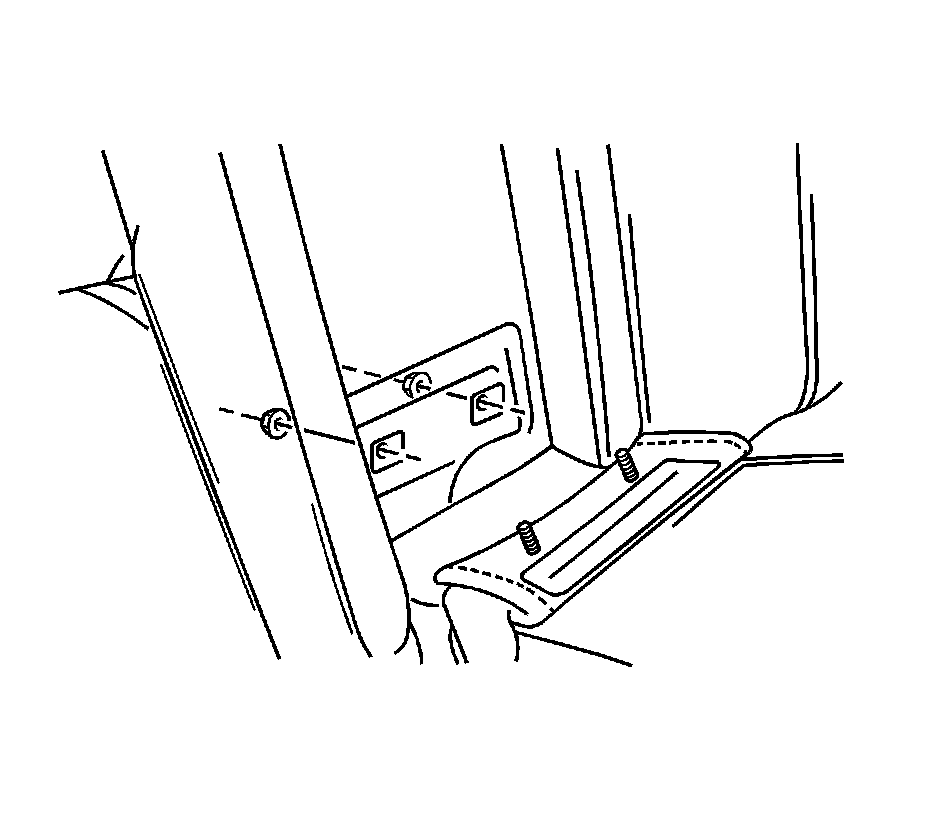

2. Remove the nuts and the armrest.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the armrest with the nuts.

Tighten the armrest nuts to 24 Nm (18 lb ft).

2. Raise and secure the rear seatbacks in the upright position.
