Front Seat Cushion Replacement

Front Seat Cushion Replacement

Removal Procedure




1. Remove the front bucket seat from the vehicle. Refer to Front Seat Replacement - Bucket Front Seat Replacement - Bucket.
2. Remove the each seat trim.
3. Disconnect the electrical connectors.
4. Remove the bolts and the seatback.

Installation Procedure




1. Install the cushion onto the seat track.
Notice: Refer to Fastener Notice Fastener Notice.

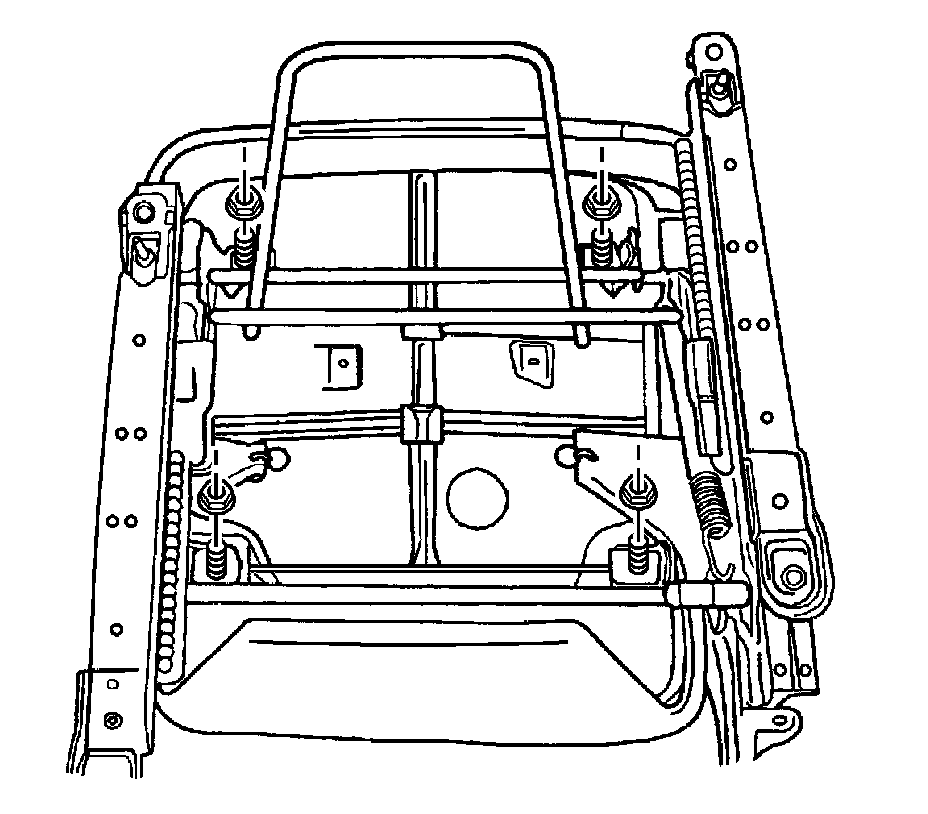

2. Install the seat cushion with the nuts.

Tighten the front seat cushion nuts to 12 Nm (106 lb in).

3. Install the seat trims.
4. Install the front seat in the vehicle. Refer to Front Seat Replacement - Bucket Front Seat Replacement - Bucket.
