Seat Back Replacement - Rear Split Folding

Seat Back Replacement - Rear Split Folding

Removal Procedure




1. Lower the rear seatbacks.

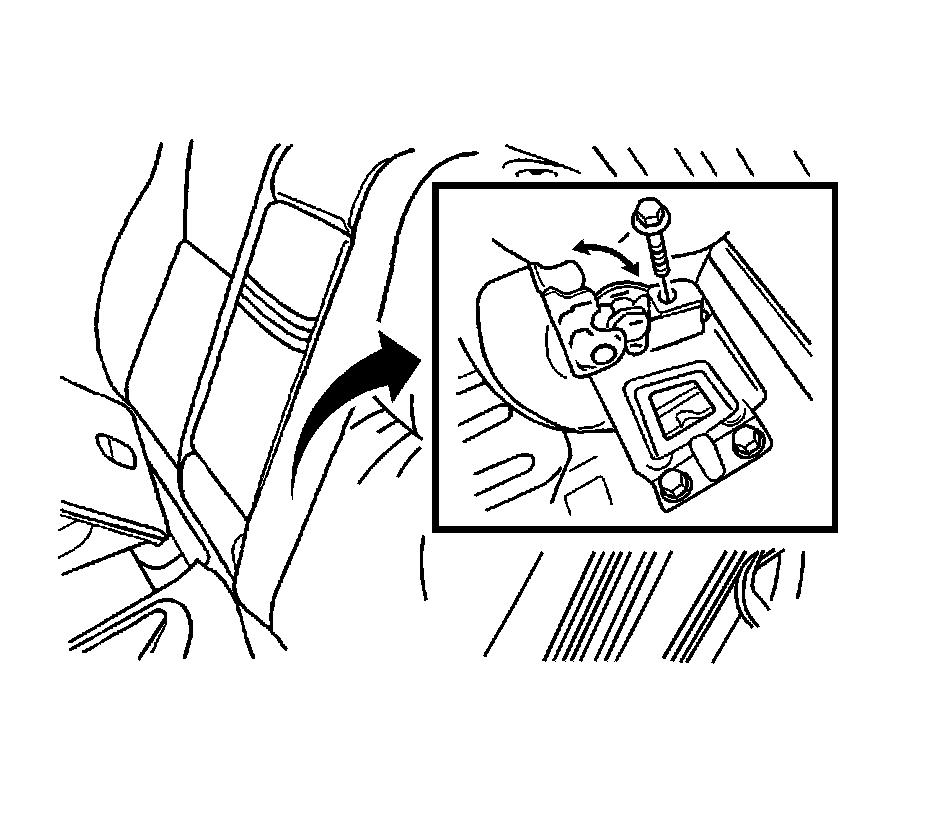

2. Remove the bolts, and the seatback from the hinges.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the seatback to the hinges with the bolts.

Tighten the rear seatback bolts to 25 Nm (18 lb ft).

2. Raise and secure the rear seatbacks in the upright position.
