Seat Back Hinge Replacement - Rear

Seat Back Hinge Replacement - Rear

Removal Procedure




1. Remove the rear seatback and the rear seat cushion. Refer to Seat Back Replacement - Rear Split Folding Seat Back Replacement - Rear Split Folding and Rear Seat Cushion Replacement Rear Seat Cushion Replacement.

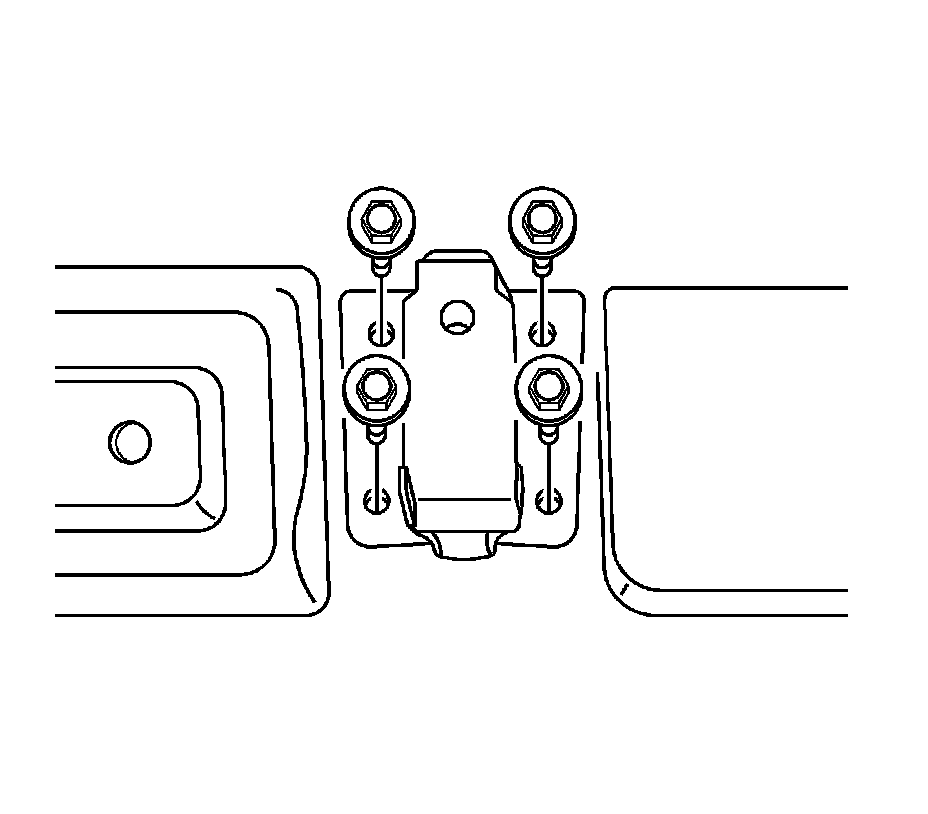

2. Remove the bolts, and the seatback from the hinges.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the seatback center hinge with the bolts.

Tighten the rear seat hinge bolts to 45 Nm (33 lb ft).

2. Install the rear seatback and the rear seat cushion. Refer to Rear Seat Cushion Replacement Rear Seat Cushion Replacement and Seat Back Replacement - Rear Split Folding Seat Back Replacement - Rear Split Folding.
