Sunroof / Moonroof: Service and Repair

Sunroof Module Assembly Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the headliner. Refer to Headlining Trim Panel Replacement Service and Repair.

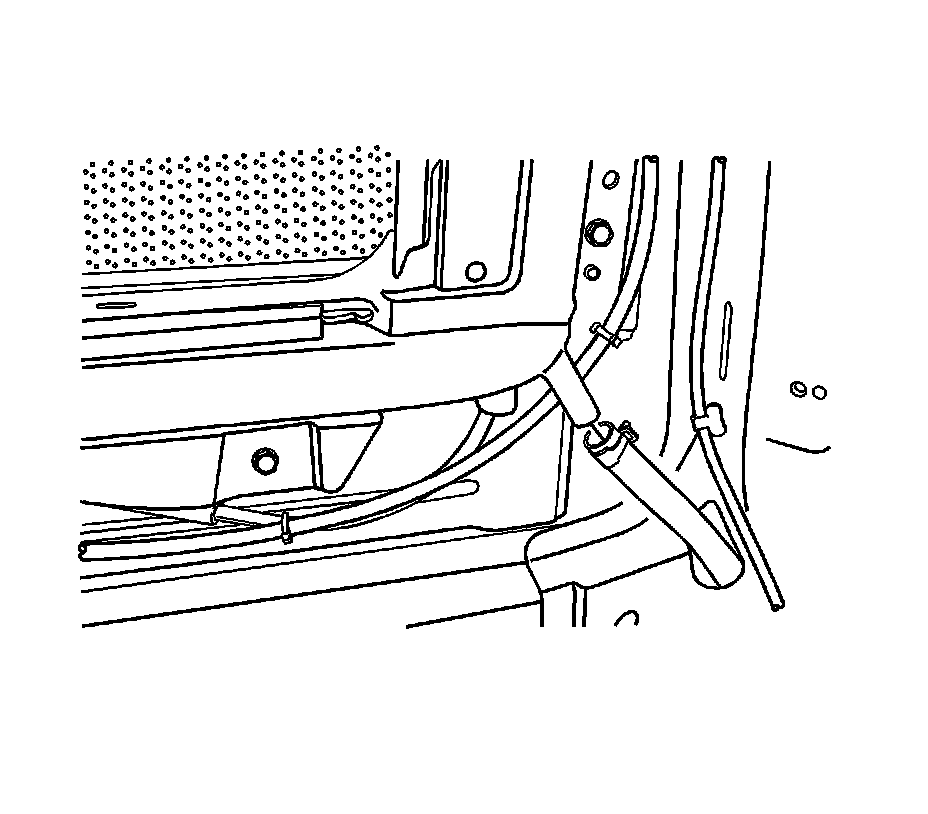

3. Remove the drain hoses.




4. Disconnect the electrical connectors.

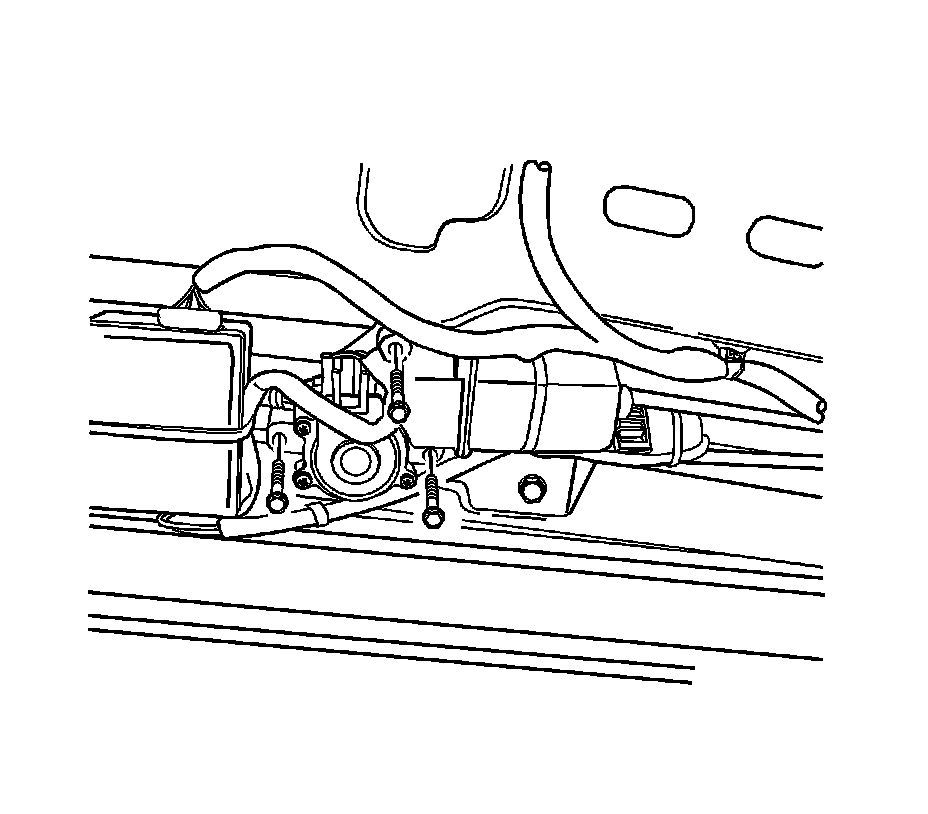

5. Remove the screws and the motor.




6. Remove the motor control module.

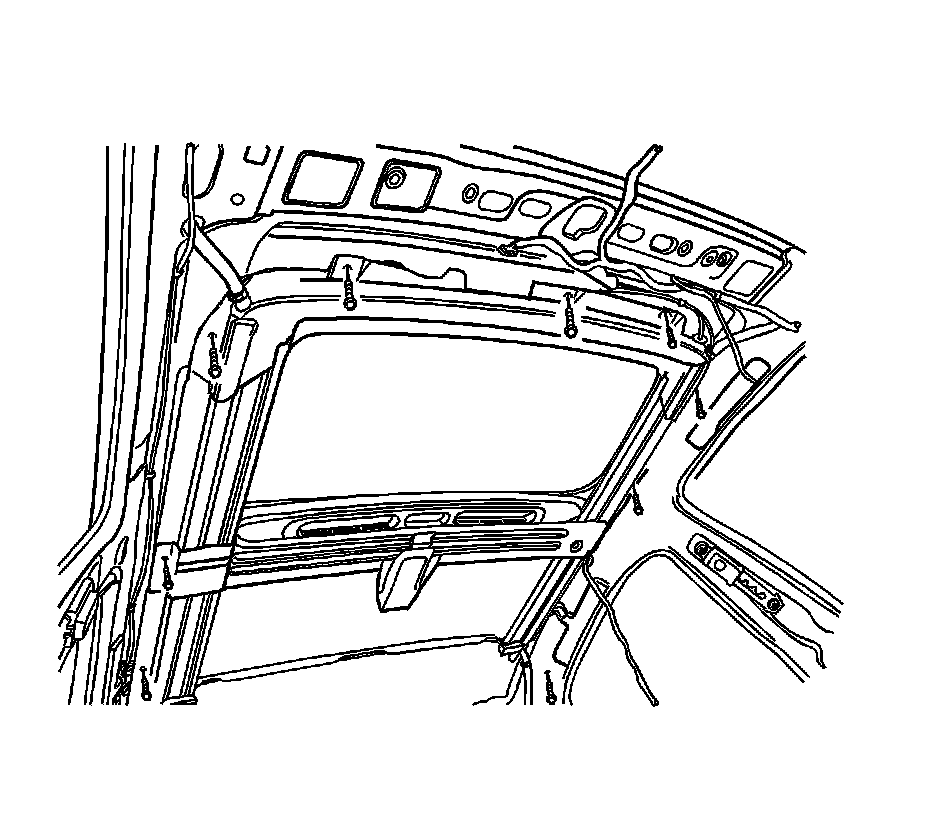

7. Remove the bolts and the housing from the vehicle.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the housing to the roof of the vehicle with the bolts.

Tighten the sunroof housing bolts to 10 Nm (89 lb in).




2. Install the motor control module.
3. Install the motor with the screws.

Tighten the sunroof motor screws to 3 Nm (27 lb in).

4. Connect the electrical connectors.




5. Install the drain hoses.
6. Install the headliner. Refer to Headlining Trim Panel Replacement Service and Repair.
7. Connect the negative battery cable.
