Power Folding Outside Mirror Switch Replacement

Power Folding Outside Mirror Switch Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the deposit box. Refer to Deposit Box Replacement Deposit Box Replacement.

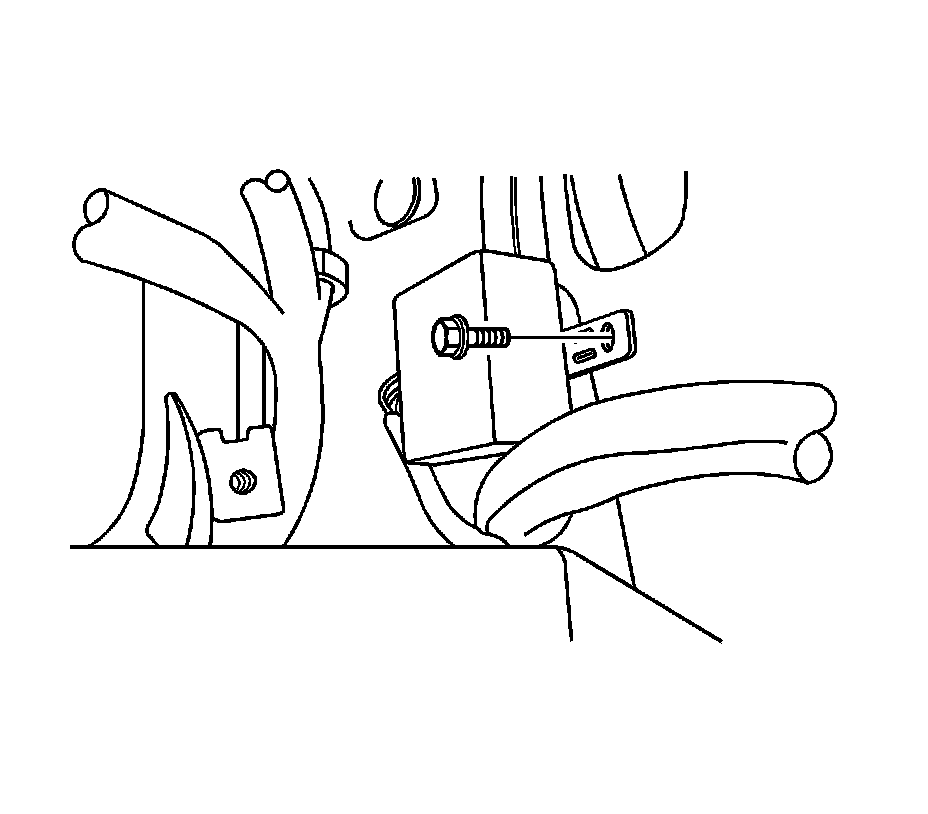

3. Remove the bolt.
4. Disconnect the electrical connector.
5. Remove the folding mirror switch.

Installation Procedure




1. Connect the electrical connector.

Notice: Refer to Fastener Notice Fastener Notice.

2. Install the folding mirror switch with the bolt.

Tighten the daytime running lamp module bolts to 10 Nm (89 lb in).

3. Install the deposit box. Refer to Deposit Box Replacement Deposit Box Replacement.
4. Connect the negative battery cable.
