Keyless Entry Receiver: Service and Repair

Remote Control Door Lock Receiver Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the floor console. Refer to Front Floor Console Replacement Front Floor Console Replacement.

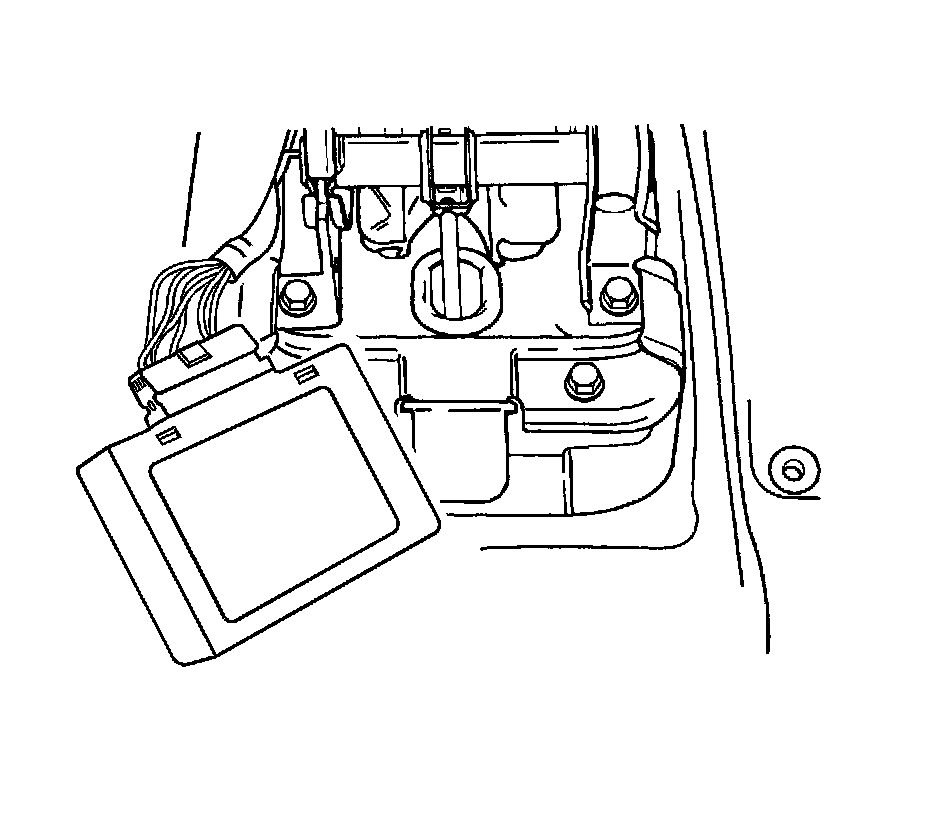

3. Disconnect the control module/receiver electrical connector.
4. Slide the control module/receiver away from the mounting bracket.

Installation Procedure




1. Install the control module/receiver on its mounting bracket.
2. Connect the control module/receiver electrical connector.
3. Install the floor console. Refer to Front Floor Console Replacement Front Floor Console Replacement.
4. Connect the negative battery cable.
