Front Side Door Locking Rod Replacement

Front Side Door Locking Rod Replacement

Removal Procedure




1. Remove the door seal trim. Refer to Door Water Deflector Replacement Door Water Deflector Replacement.
2. Remove the inside door handle. Refer to Door Inside Handle Replacement Service and Repair.

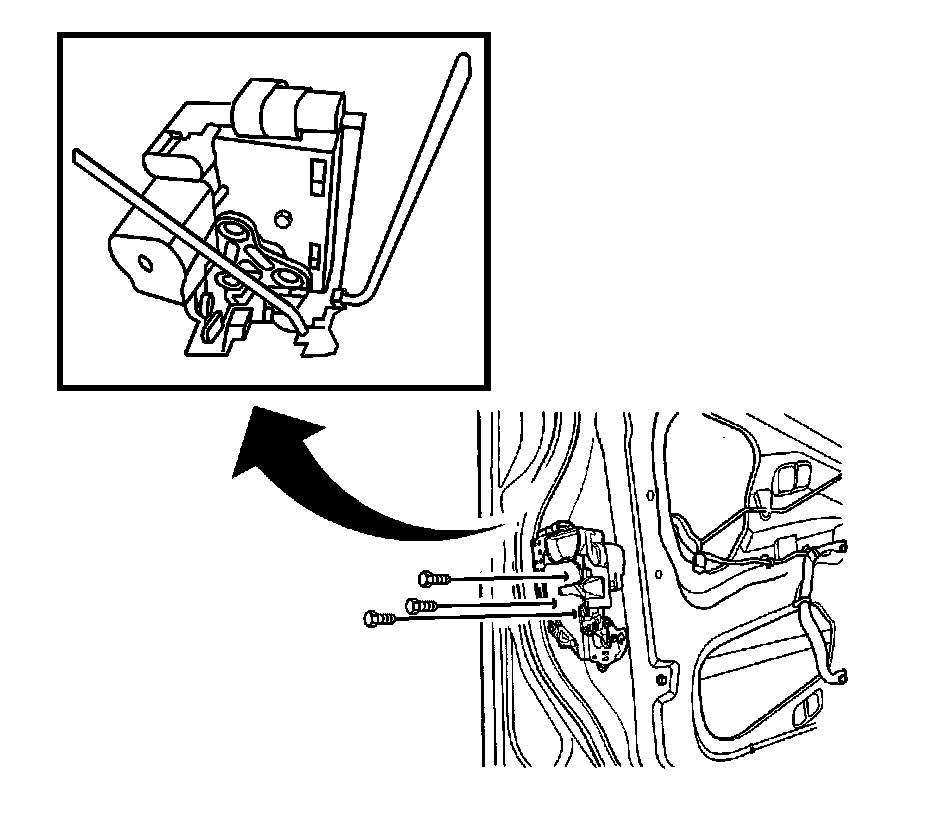

3. Disconnect the inside lock rods from the lock.

Installation Procedure




1. Connect the inside lock rods to the lock.
2. Install the inside door handle. Refer to Door Inside Handle Replacement Service and Repair.
3. Install the door seal trim. Refer to Door Water Deflector Replacement Door Water Deflector Replacement.
