Cargo Area Side Trim Panel Replacement

Cargo Area Side Trim Panel Replacement

Removal Procedure




1. Remove the third pillar trim panel. Refer to Third Pillar Trim Replacement Third Pillar Trim Replacement.
2. Remove the rear lower quarter trim panel. Refer to Rear Quarter Lower Trim Panel Replacement Rear Quarter Lower Trim Panel Replacement.
3. Remove the rear upper quarter trim panel. Refer to Rear Quarter Upper Trim Panel Replacement (Sedan) Rear Quarter Upper Trim Panel Replacement (Sedan)Rear Quarter Upper Trim Panel Replacement (Wagon) Rear Quarter Upper Trim Panel Replacement (Wagon).

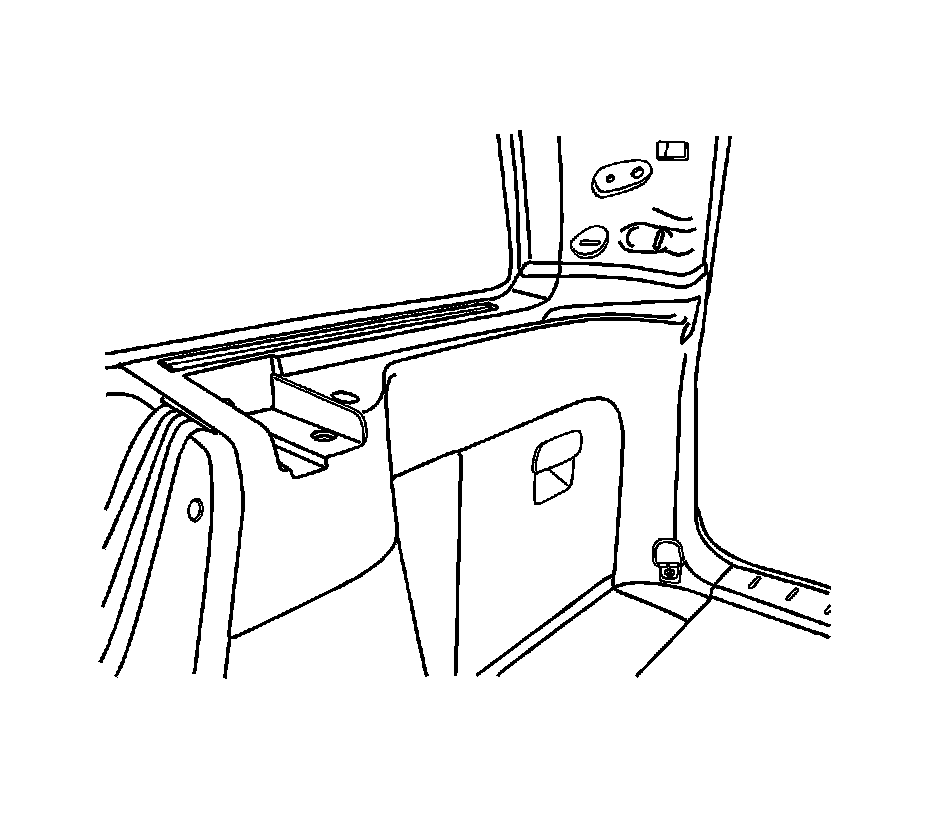

4. Remove the screws, the clips, and the cargo area side trim panel.

Installation Procedure




1. Install the cargo area side trim panel with the clips and screws.
2. Install the rear upper quarter trim panel. Refer to Rear Quarter Upper Trim Panel Replacement (Sedan) Rear Quarter Upper Trim Panel Replacement (Sedan)Rear Quarter Upper Trim Panel Replacement (Wagon) Rear Quarter Upper Trim Panel Replacement (Wagon).
3. Install the rear lower quarter trim panel. Refer to Rear Quarter Lower Trim Panel Replacement Rear Quarter Lower Trim Panel Replacement.
4. Install the third pillar trim panel. Refer to Third Pillar Trim Replacement Third Pillar Trim Replacement.
