Cargo Area Rear Trim Panel Replacement (Sedan)

Cargo Area Rear Trim Panel Replacement (Sedan)

Tools Required

J 21104-B Weatherstrip Remover Universal

Removal Procedure




1. Remove the luggage compartment rear panel cover. Refer to Rear Compartment Trim Panel Replacement Rear Compartment Trim Panel Replacement.

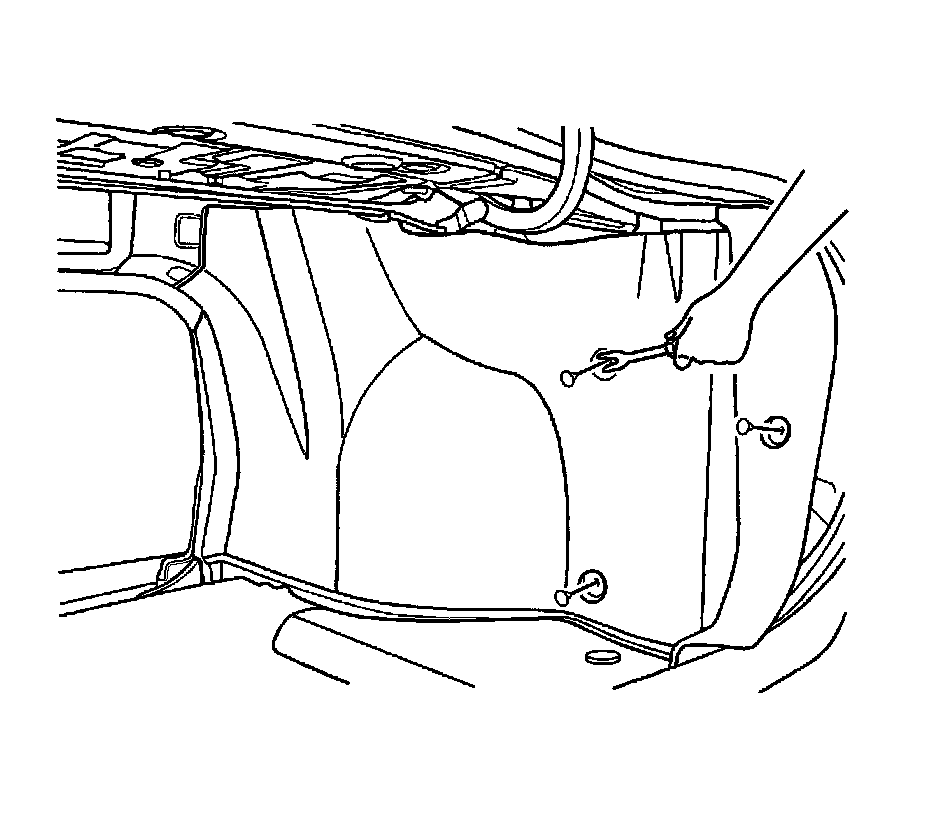

2. Remove the plastic retaining clips using the J 21104-B and reposition the luggage compartment rear trim panel.

Installation Procedure




1. Install the wheelhouse trim panel with the plastic clips.
2. Install the luggage compartment rear panel cover. Refer to Rear Compartment Trim Panel Replacement Rear Compartment Trim Panel Replacement.
