Cargo Area Rear Trim Panel Replacement (Liftgate)

Cargo Area Rear Trim Panel Replacement (Liftgate)

Tools Required

J 21104-B Weatherstrip Remover Universal

Removal Procedure




1. Remove the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement Rear Compartment Trim Panel Replacement.

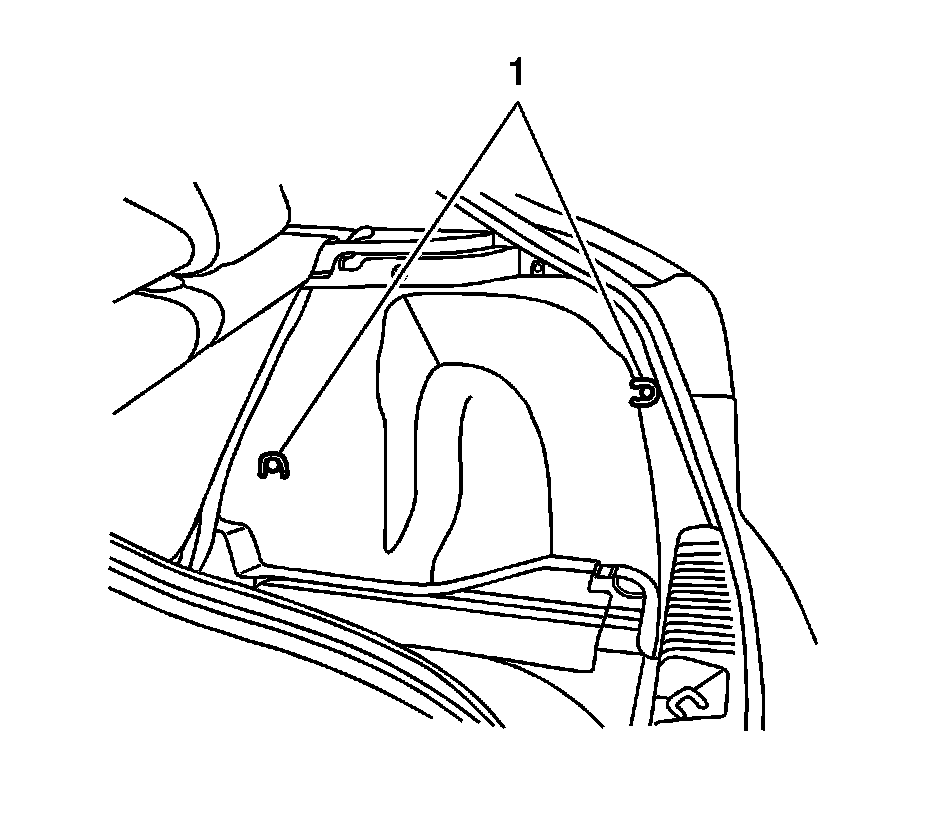

2. Remove the cargo area rear trim panel plastic retaining clips (1) using the J 21104-B .
3. Remove the cargo area rear trim panel retaining screw.

Installation Procedure




1. Position the cargo area rear trim panel.
2. Install the cargo area rear trim panel retaining screw.
3. Install the rear cargo area trim panel plastic clips (1).
4. Install the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement Rear Compartment Trim Panel Replacement.
