Instrument Cluster Trim Panel Replacement (Four Door)

Instrument Cluster Trim Panel Replacement (Four Door)

Removal Procedure

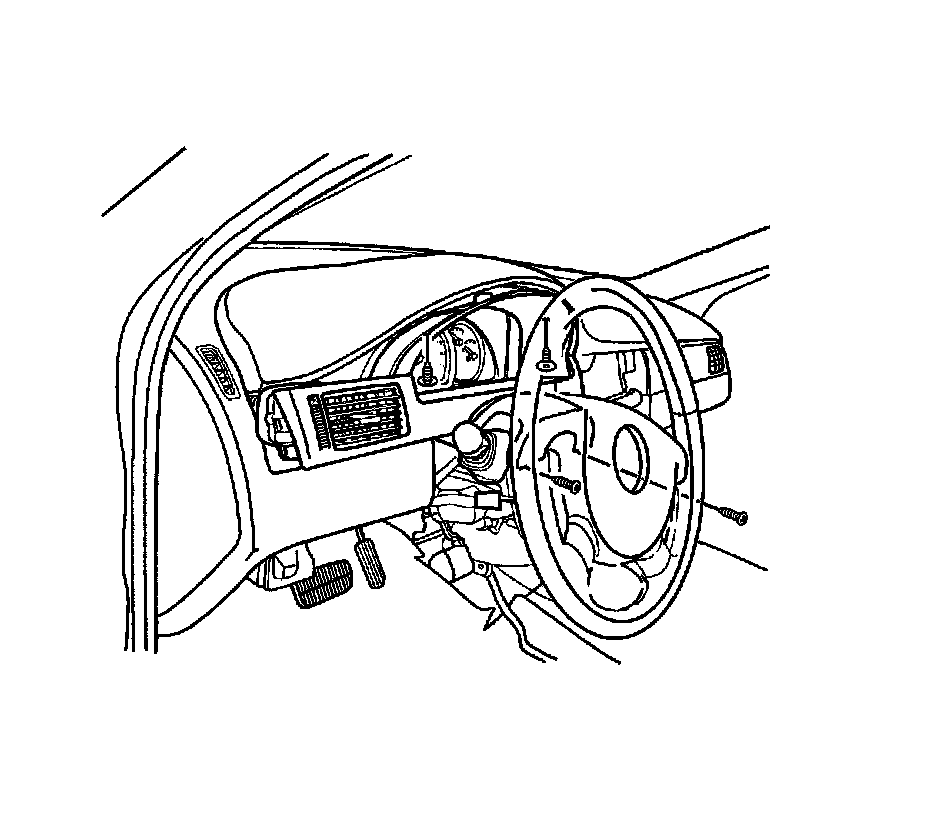

1. Remove the screws and the instrument cluster trim panel.
2. Disconnect the electrical connectors.

Installation Procedure




1. Connect the electrical connectors.

Notice: Refer to Fastener Notice Fastener Notice.

2. Install the instrument cluster trim panel with the screws.

Tighten the instrument cluster trim panel screws to 4 Nm (35 lb in).
