Front Floor Console Replacement

Front Floor Console Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

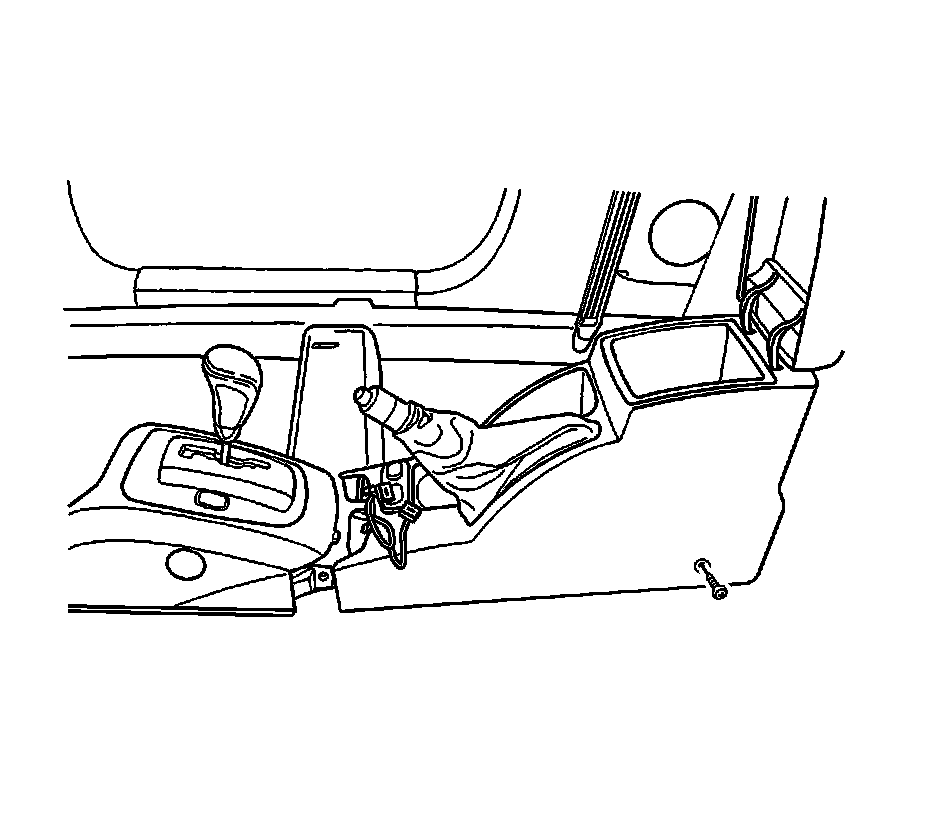

2. Remove the screw from the rear portion of the floor console.

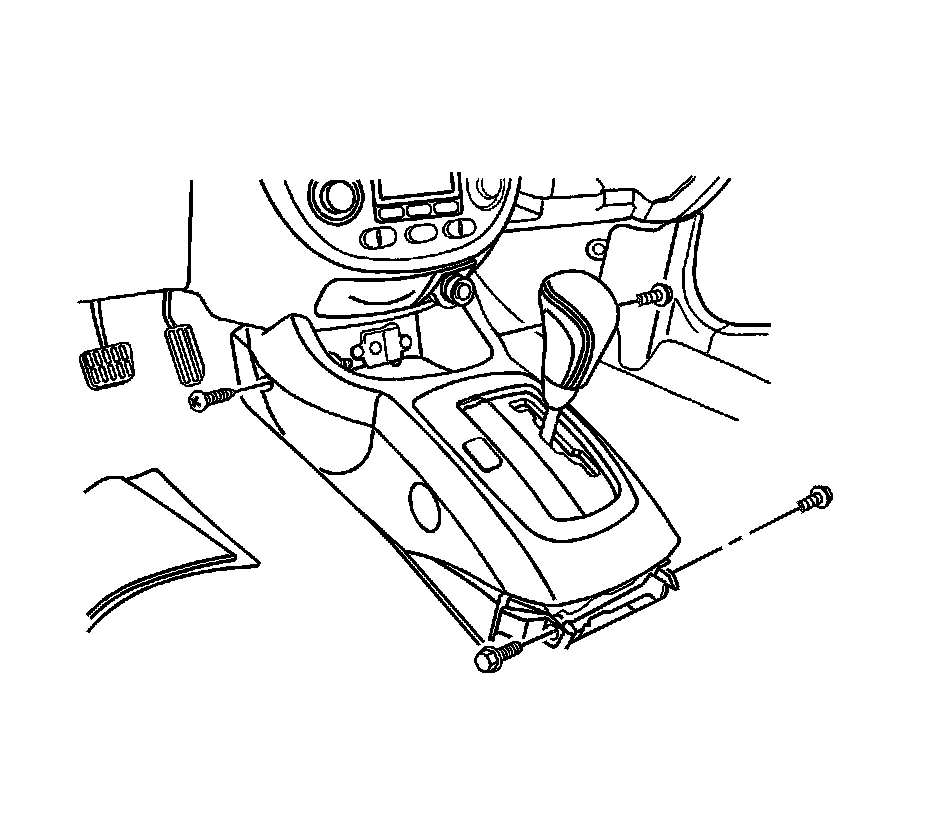

3. Remove the screws from the front portion of the floor console.
4. Remove the floor console.
5. Disconnect the electrical connectors.

Installation Procedure




1. Connect the electrical connectors.
2. Install the floor console.

Notice: Refer to Fastener Notice Fastener Notice.

3. Install the front portion of the floor console with the screws.




4. Install the screws to the rear portion of the floor console.
5. Connect the negative battery cable.
