Ash Tray: Service and Repair

Ashtray Replacement

Removal Procedure




1. Remove the instrument panel center molding.

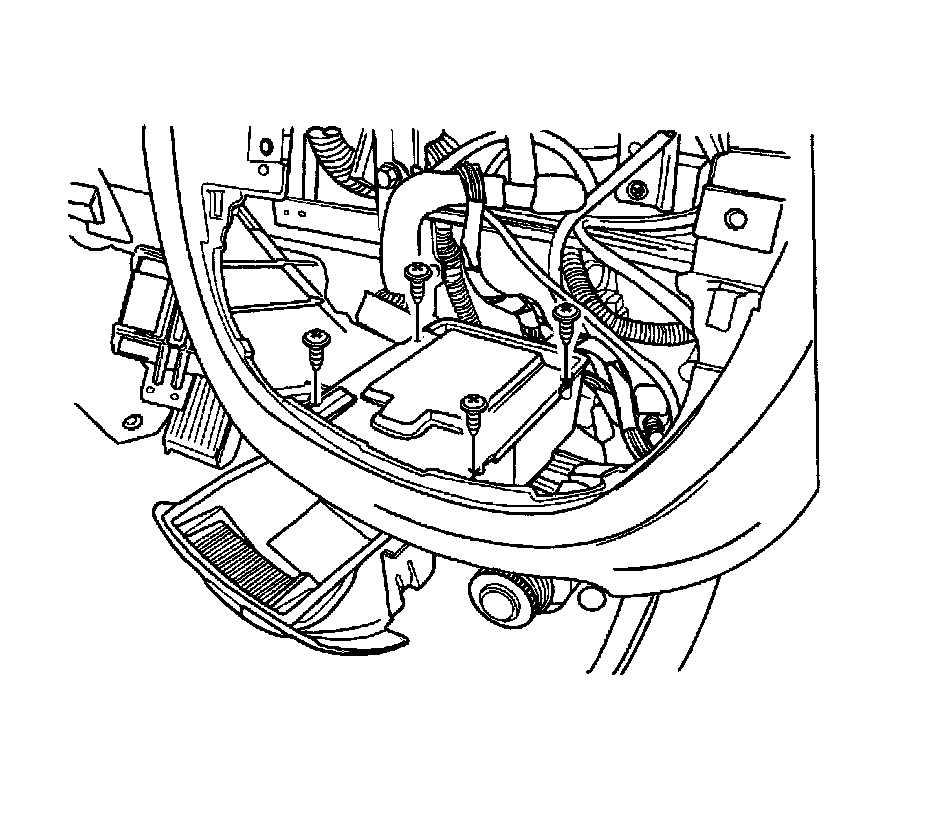

2. Remove the screws and the ashtray housing.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the ashtray housing with screws.
2. Install the instrument panel center molding.
