Fascia Grille Replacement (Four Door/Wagon)

Fascia Grille Replacement (Four Door/Wagon)

Removal Procedure




1. Open the hood.

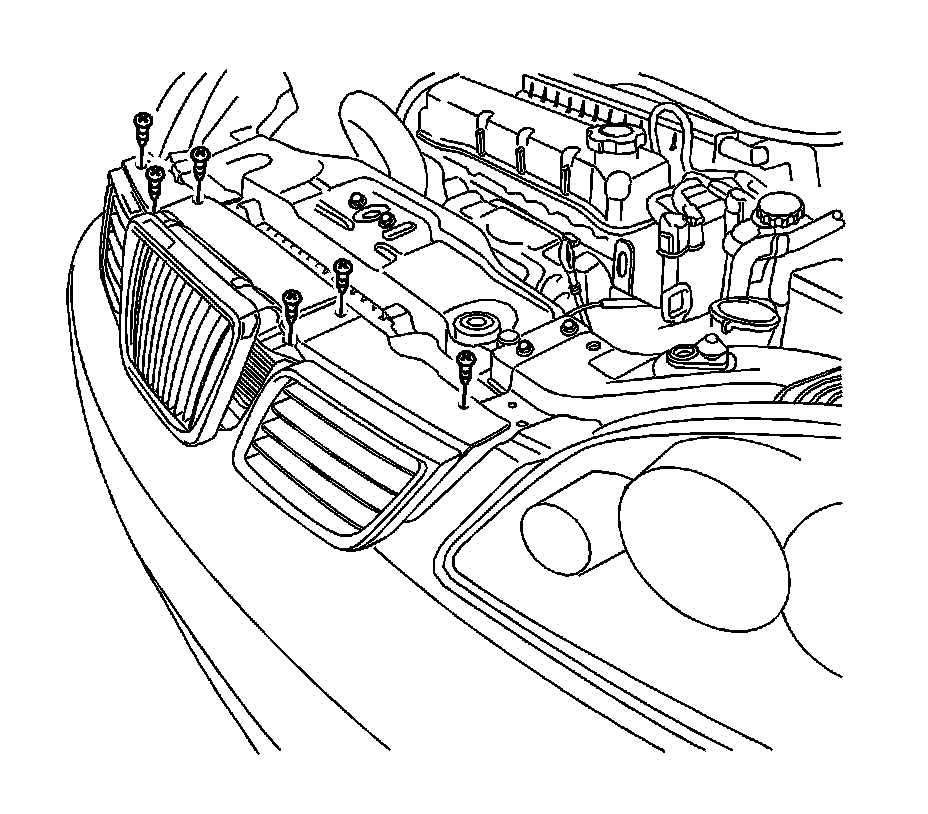

2. Remove the screws and the radiator grille.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

Install the radiator grille with the screws.
