Lower Side Moulding / Trim: Service and Repair

Center Pillar Applique Replacement

Removal Procedure




1. Remove the outside channel molding. Refer to Outer Belt Sealing Strip Replacement Outer Belt Sealing Strip Replacement.

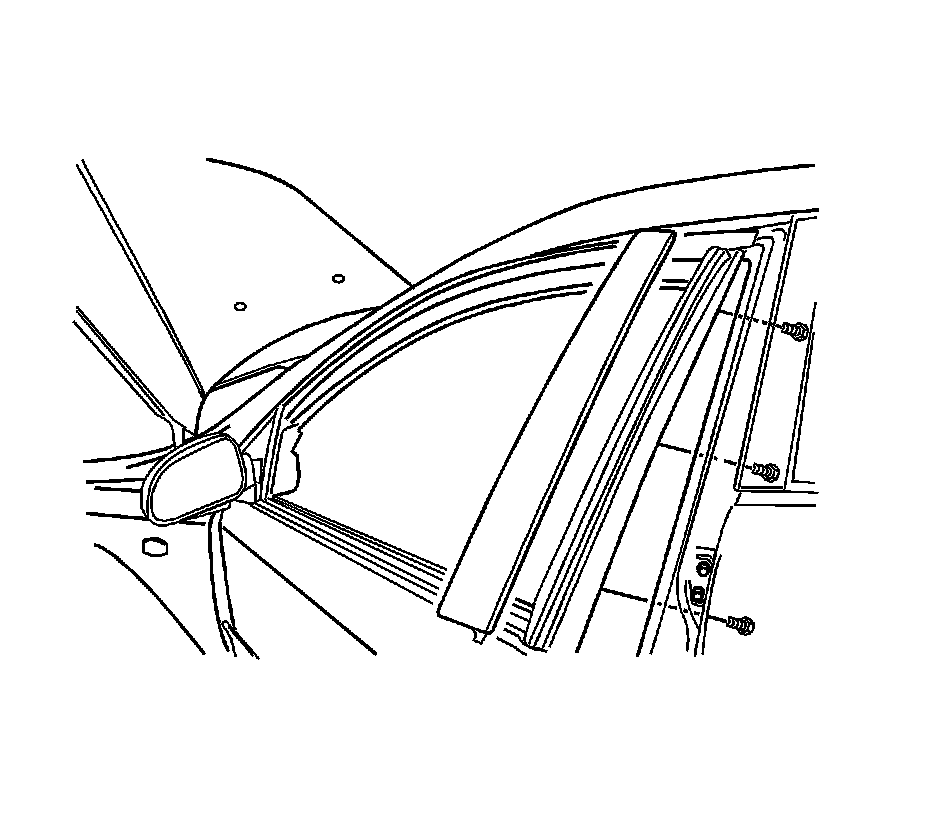

2. Position the weatherstrip in order to access the screws.
3. Remove the screws and the center pillar molding.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the screws and the center pillar molding.

Tighten the center pillar molding screws to 1.3 Nm (12 lb in).

2. Install the weatherstrip to its original position.
3. Install the outside channel molding. Refer to Outer Belt Sealing Strip Replacement Outer Belt Sealing Strip Replacement.
