Rear Compartment Lid Weatherstrip Replacement

Rear Compartment Lid Weatherstrip Replacement

Removal Procedure




1. Open the luggage compartment lid.

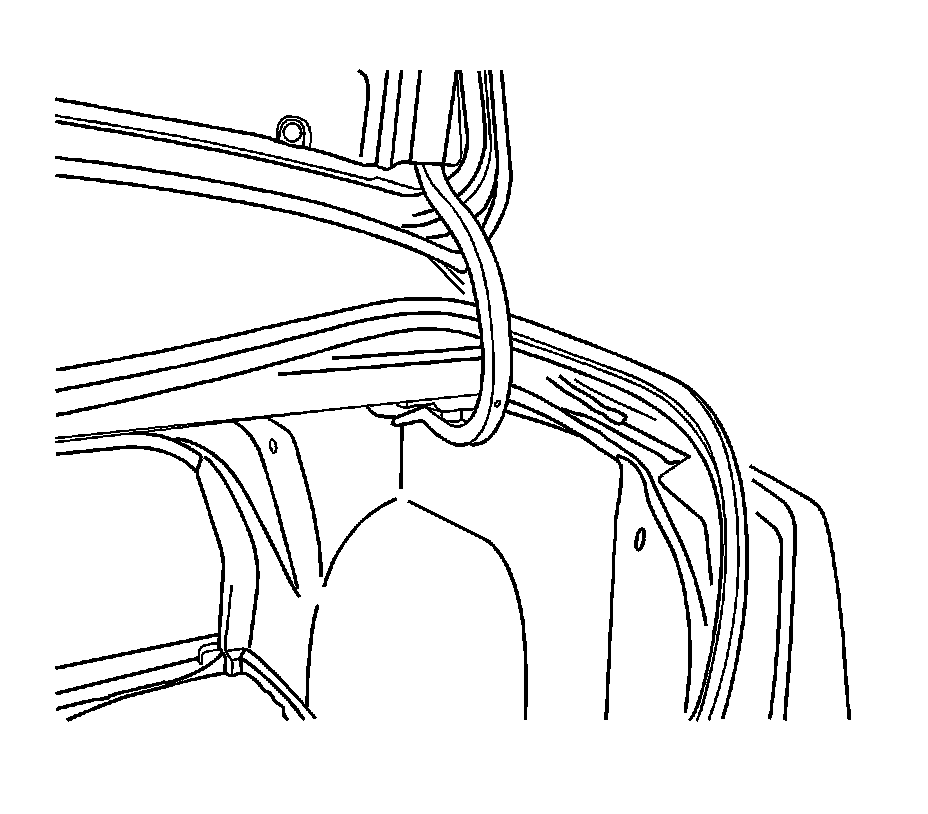

2. Remove the weatherstrip from around the gutter.

Installation Procedure

1. Install the weatherstrip onto the gutter flange.
2. Inspect the weatherstrip. Make sure that the clinch is completely seated onto the flange.
3. Using a water hose without a nozzle, test the rear deck lid to make sure that no leaks are present.
