Trunk Latch Switch

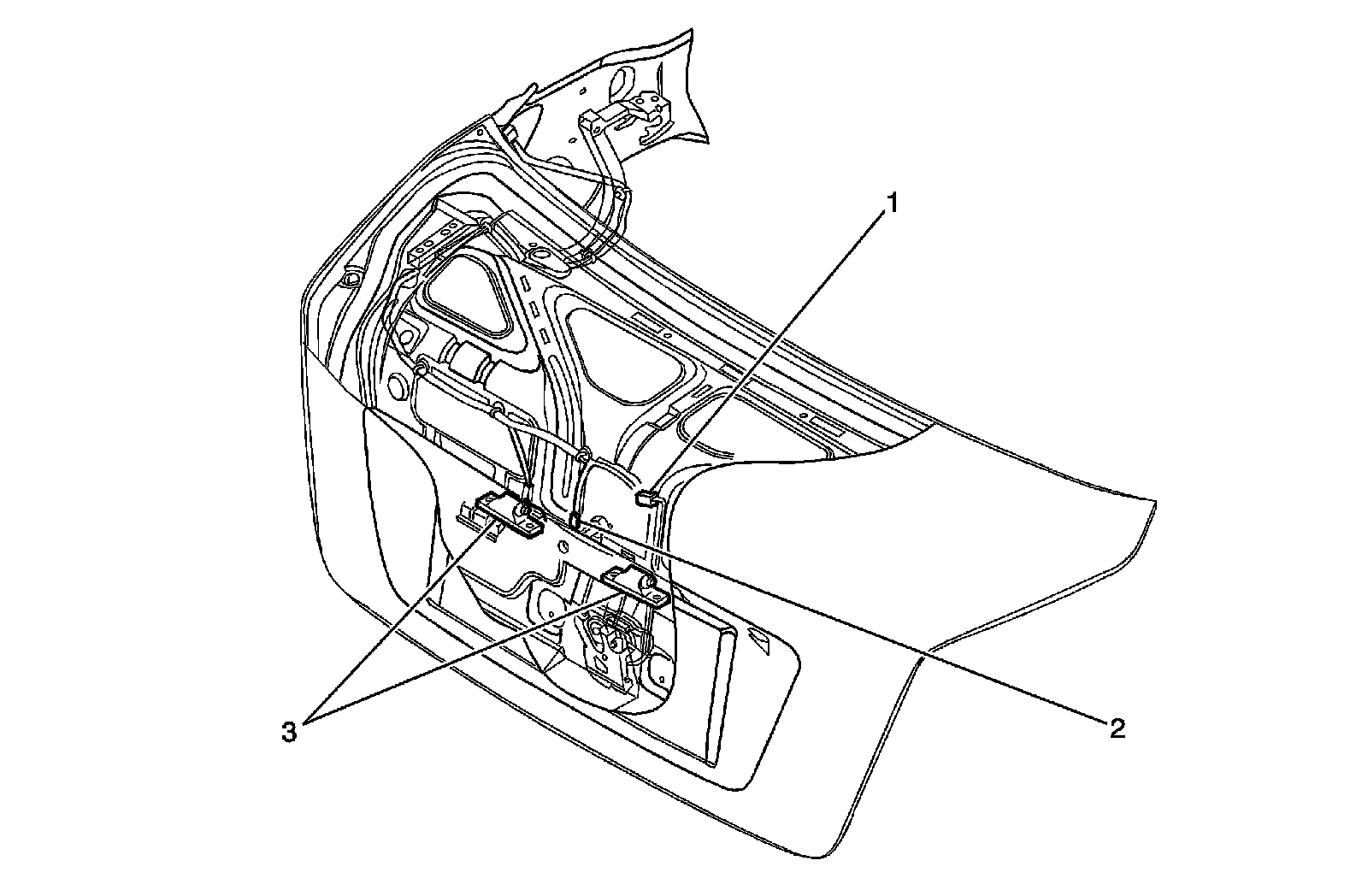

Harness Routing Views

Rear Harness Wiring




1 - Trunk Latch Switch
2 - Theft Deterrent Tamper Switch
3 - License Plate Lamp
