Hood Shock / Support: Service and Repair

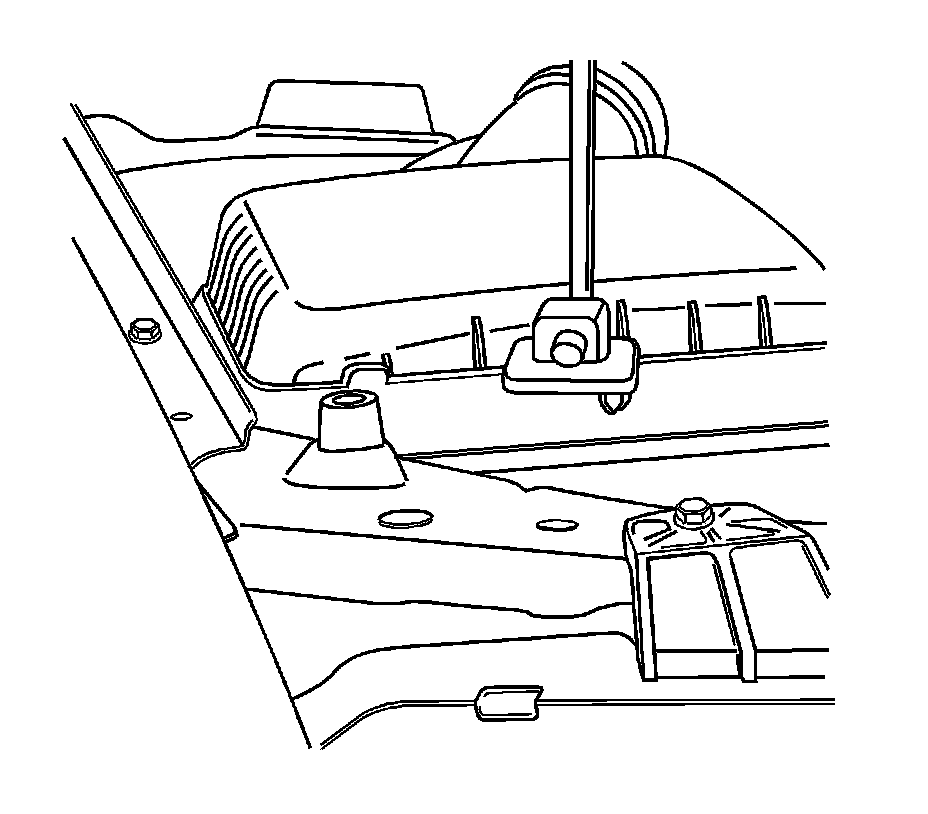

Hood Hold-Open Rod Replacement

Removal Procedure




1. Support the hood in the open position.
2. Remove the hood prop rod by gently prying the base from the radiator support.

Installation Procedure





Install the hood prop rod by snapping the base back into the radiator support.
