Fuel Door: Service and Repair

Fuel Tank Filler Door Replacement

Removal Procedure

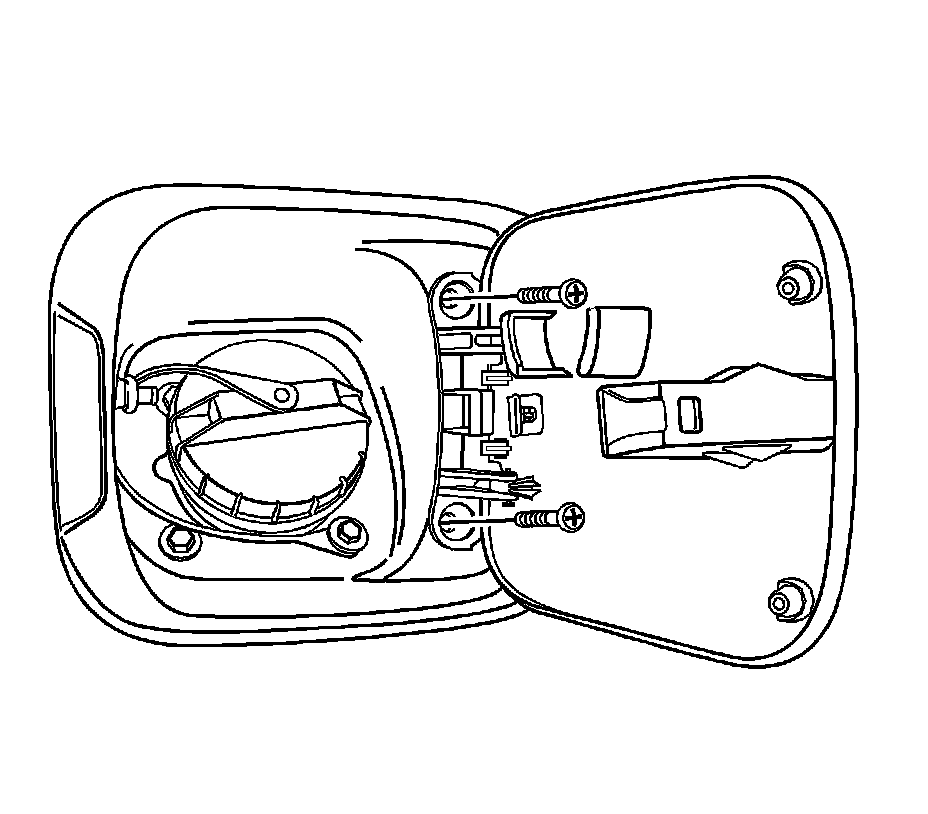

Remove the screws and the fuel filler door.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

Install the fuel filler door with the screws.

Tighten the fuel filler door screws to 4 Nm (35 lb in).
