Rear Door Weatherstrip: Service and Repair

Rear Door Opening Weatherstrip Replacement

Removal Procedure




1. Remove the rear door sill plate. Refer to Rear Side Door Sill Plate Replacement Rear Side Door Sill Plate Replacement.
2. Remove the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement Center Pillar Lower Trim Panel Replacement.

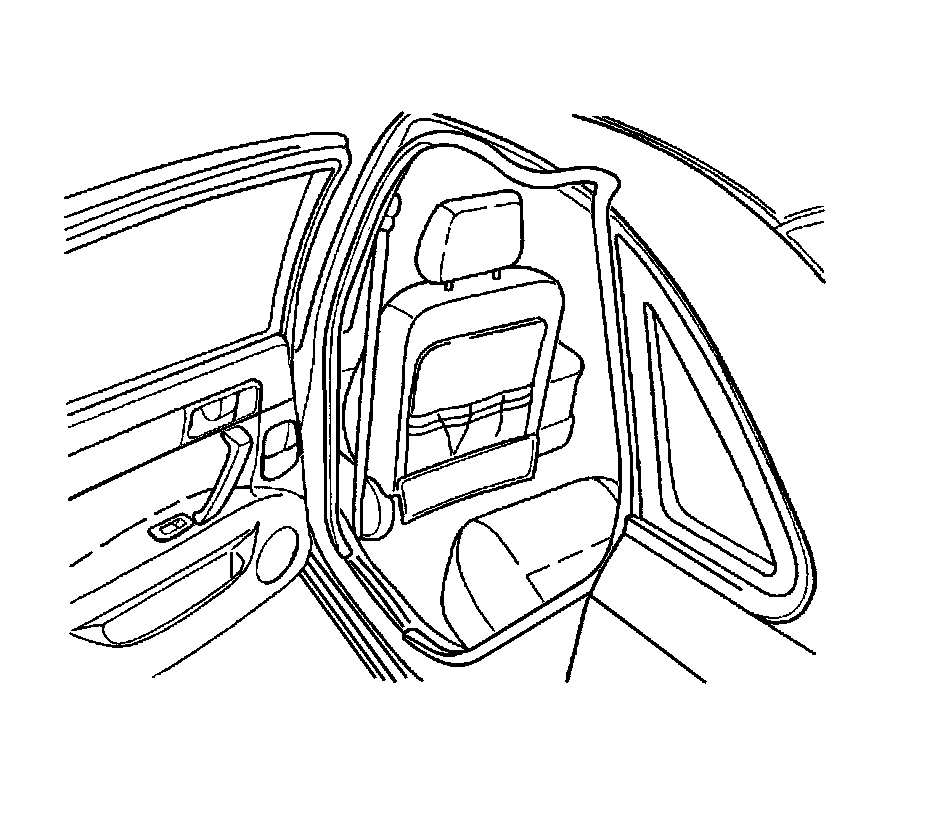

3. Remove the rear door opening weatherstrip.

Installation Procedure




1. Install the rear door opening weatherstrip.
2. Install the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement Center Pillar Lower Trim Panel Replacement.
3. Install the rear door sill plate. Refer to Rear Side Door Sill Plate Replacement Rear Side Door Sill Plate Replacement.
