Rear Door Panel: Service and Repair

Rear Door Trim Panel Replacement

Tools Required

J 21104-B Weatherstrip Remover Universal

Removal Procedure




1. Lower the rear window.
2. Pry off the inside door handle trim bezel.
3. Remove the power window control switch.
4. Disconnect the power window control switch electrical connector.

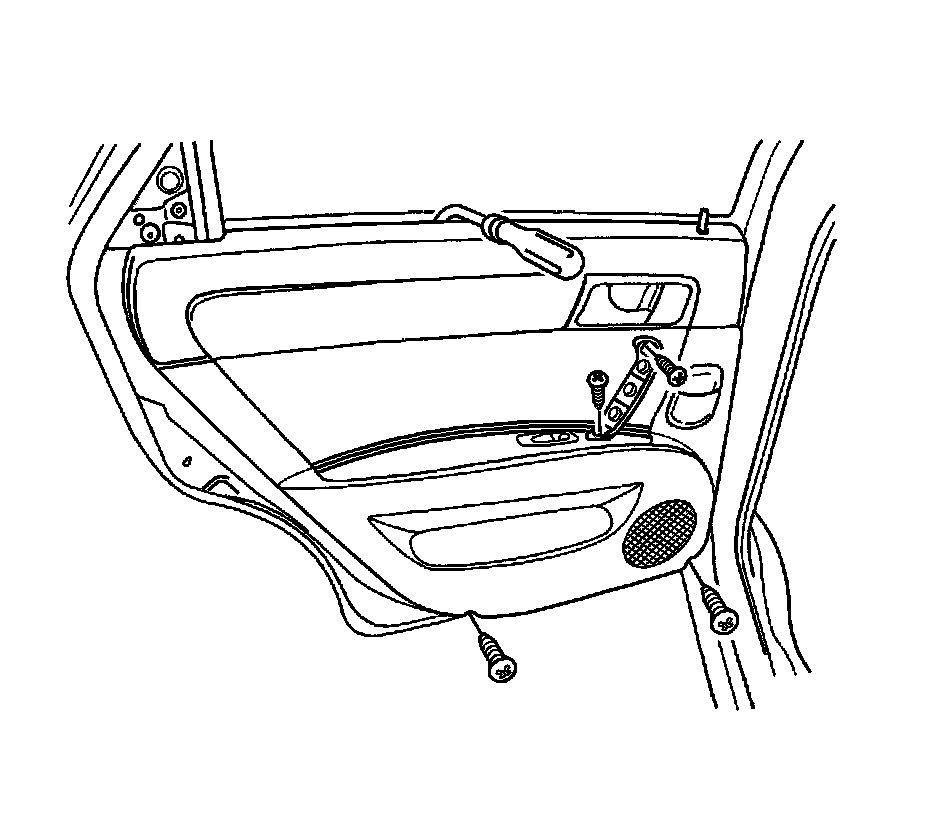

5. Remove the door trim panel screws.
6. Pry off the trim panel using the J 21104-B .

Installation Procedure




1. Install the trim panel.
2. Connect the power window control switch electrical connector, if equipped.
3. Install the power window control switch.

Notice: Refer to Fastener Notice Fastener Notice.

4. Install the door trim panel screws.

Tighten the door trim panel screws to 2.5 Nm (22 lb in).

5. Install the inside door handle trim bezel.
6. Raise the rear window.
