Rear Bumper Fascia Replacement (Five Door and Wagon)

Rear Bumper Fascia Replacement (Five Door and Wagon)

Removal Procedure




1. Remove the rear wheels. Refer to Tire and Wheel Removal and Installation Service and Repair.
2. Remove the screws and the splash shields.

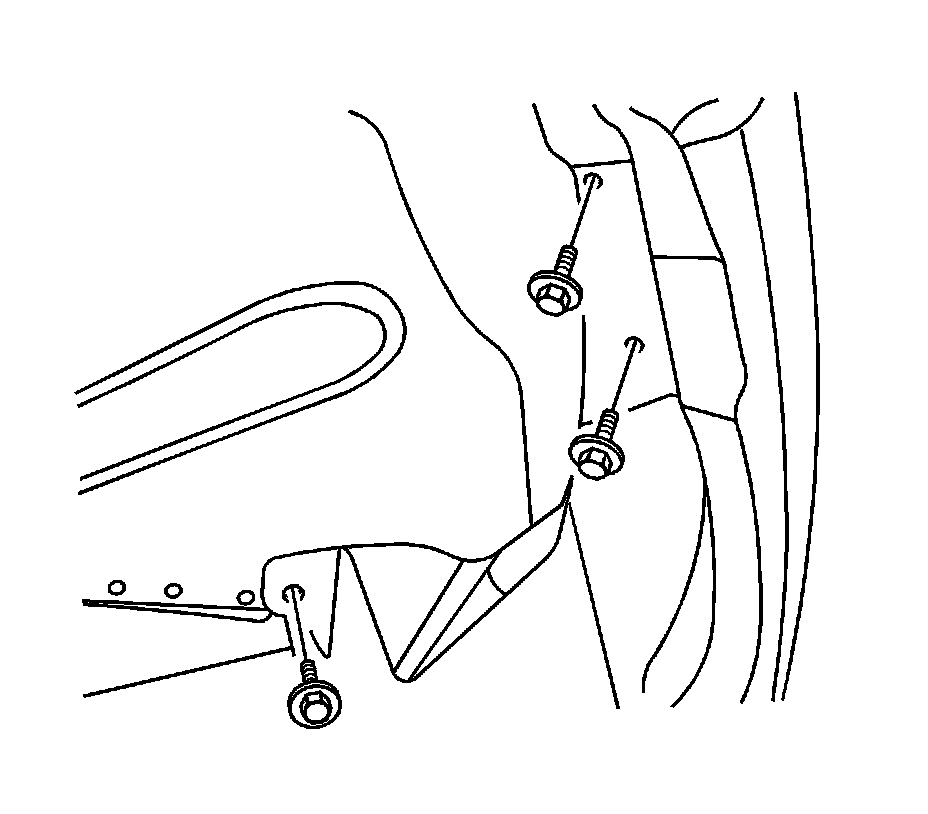

3. Remove the screws behind the fascia.




4. Remove the luggage compartment rear quarter trim panels. Refer to Cargo Area Rear Trim Panel Replacement (Liftgate) Cargo Area Rear Trim Panel Replacement (Liftgate)Cargo Area Rear Trim Panel Replacement (Sedan) Cargo Area Rear Trim Panel Replacement (Sedan).

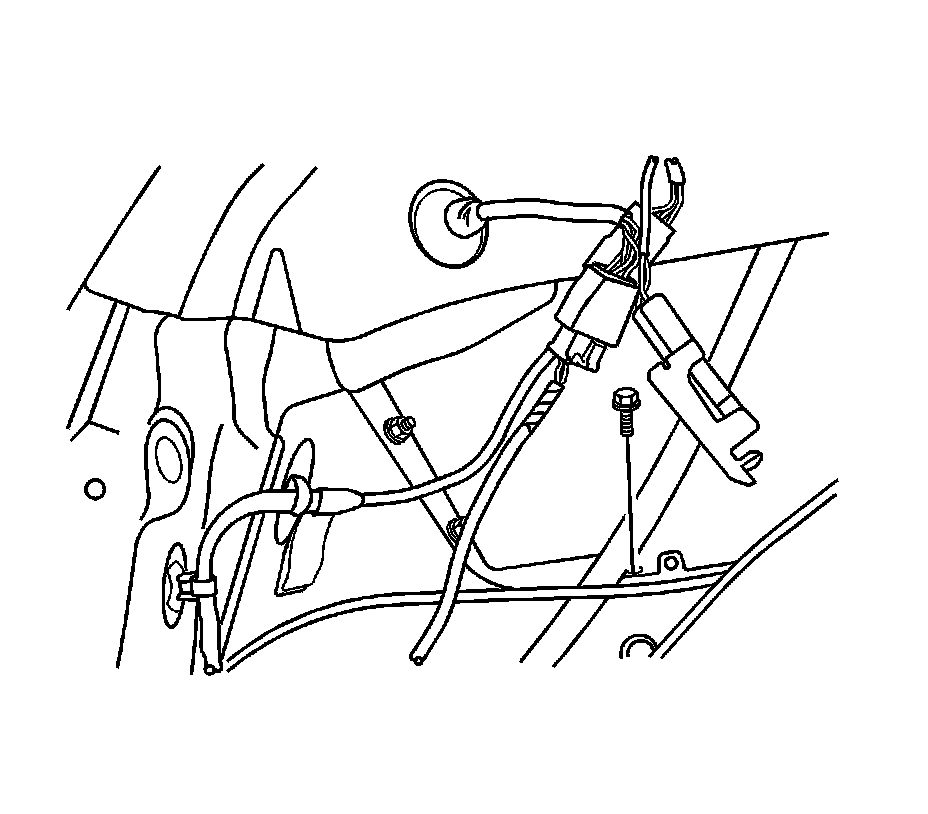

5. Remove the bolts and the nuts in the luggage compartment.

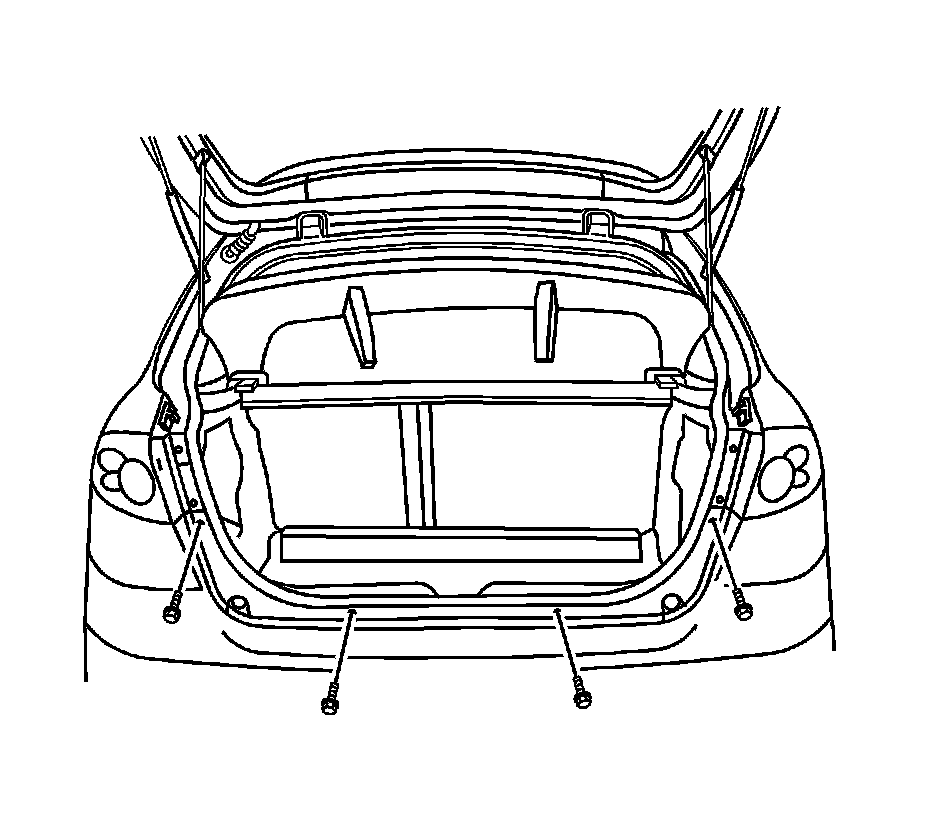

6. Remove the bolts and the screws.
7. Remove the rear bumper fascia.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the rear bumper fascia with the bolts and the screws.




2. Install the bolts and the nuts in the luggage compartment.
3. Install the luggage compartment rear quarter trim panels. Refer to Cargo Area Rear Trim Panel Replacement (Liftgate) Cargo Area Rear Trim Panel Replacement (Liftgate)Cargo Area Rear Trim Panel Replacement (Sedan) Cargo Area Rear Trim Panel Replacement (Sedan).




4. Install the screws behind the fascia.
5. Install the splash shields with the screws.
6. Install the rear wheels. Refer to Tire and Wheel Removal and Installation Service and Repair.
