Front Bumper Impact Bar Replacement

Front Bumper Impact Bar Replacement

Removal Procedure




1. Disconnect the electrical connector.
2. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement.
3. Remove the front bumper energy absorber. Refer to Front Bumper Fascia Energy Absorber Replacement Front Bumper Fascia Energy Absorber Replacement.

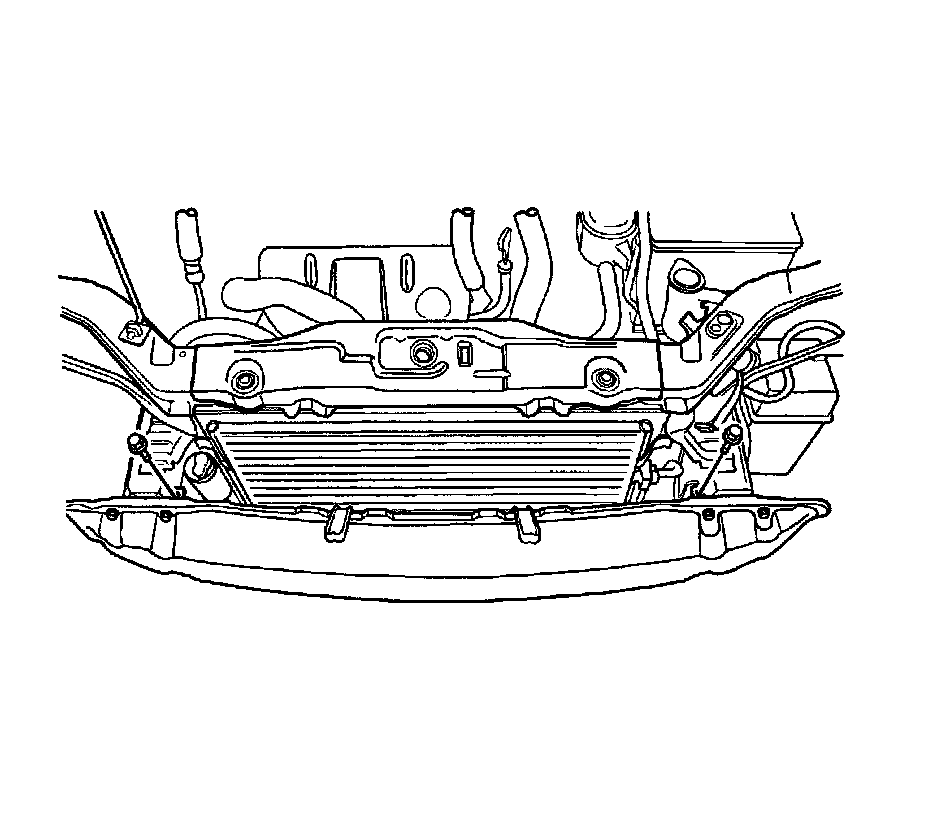

4. Remove the bolts and the front bumper impact bar.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the front impact bar with the bolts.

Tighten the front impact bar bolts to 39 Nm (29 lb ft).

2. Install the front bumper energy absorber. Refer to Front Bumper Fascia Energy Absorber Replacement Front Bumper Fascia Energy Absorber Replacement.
3. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement.
4. Connect the electrical connector.
