Fascia Grille Replacement (Five Door)

Fascia Grille Replacement (Five Door)

Removal Procedure




1. Open the hood.

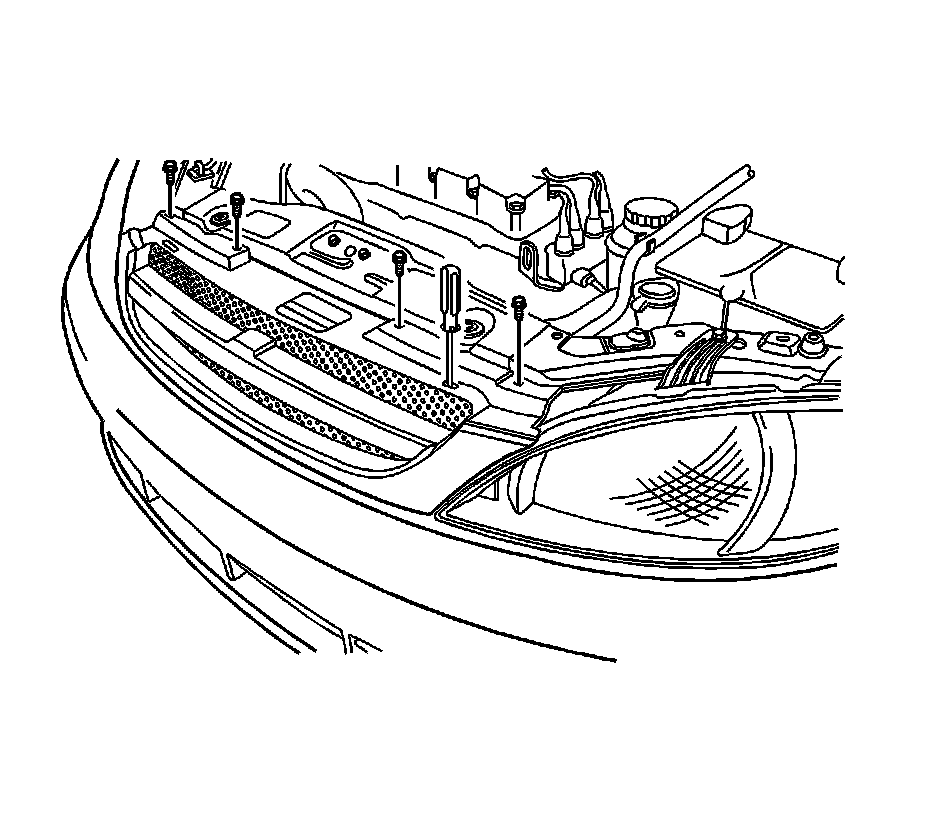

2. Remove the screws.
3. Using a flat-bladed tool, disconnect the clips.
4. Remove the fascia grille.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

Install the radiator grille with the screws.
