Body and Frame: Application and ID

Structure Identification

1 of 4

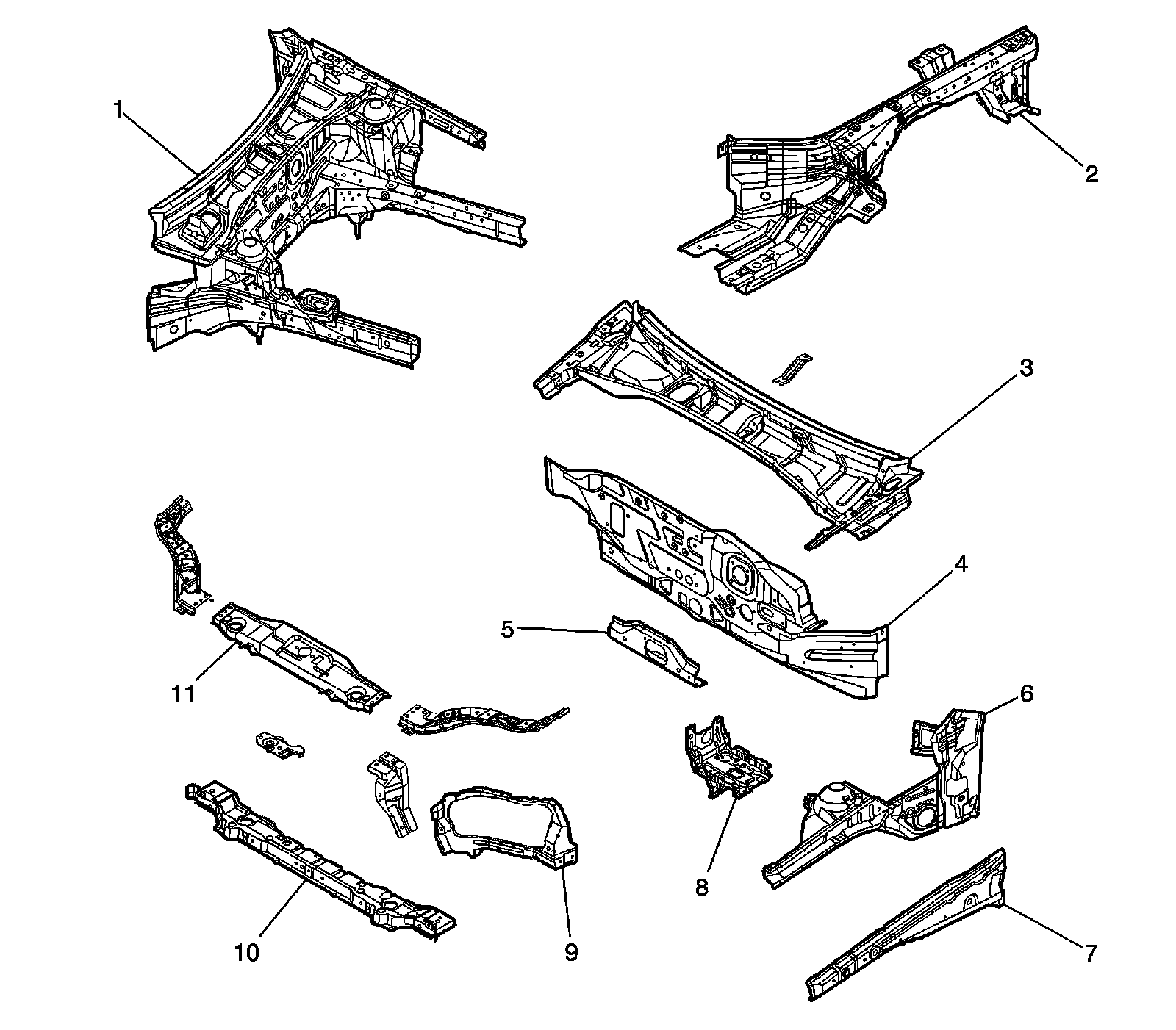

1 - Engine Room Assembly
2 - Front Longitudinal Assembly
3 - Dash Panel Upper
4 - Dash Panel Lower
5 - Dash Lower Center Crossmember
6 - Front Wheelhouse Assembly
7 - Wheelhouse Brace
8 - Battery Tray
9 - Front End Panel
10 - Radiator Crossmember Assembly
11 - Front End Panel Upper

2 of 4

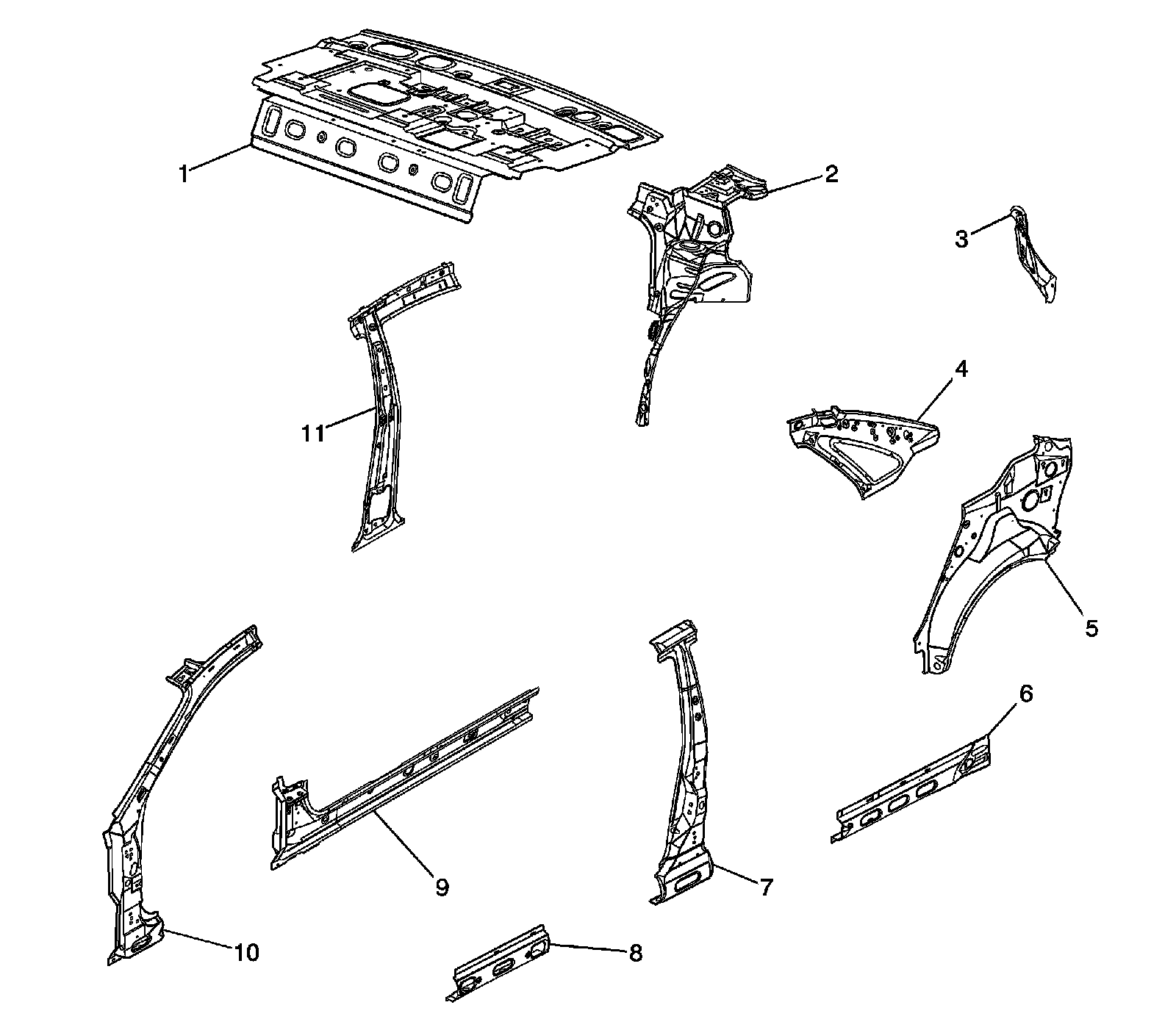

1 - Back Upper Panel Assembly
2 - Wheelhouse Inner Assembly
3 - Tail Lamp Housing
4 - Quarter Inner Panel
5 - Side Inner Rear Panel
6 - Rear Locker Reinforcement Assembly
7 - Center Pillar Reinforcement Assembly
8 - Front Locker Reinforcement
9 - Floor Side Panel Assembly
10 - A-Pillar - Front
11 - Center Pillar Inner Panel Assembly

3 of 4

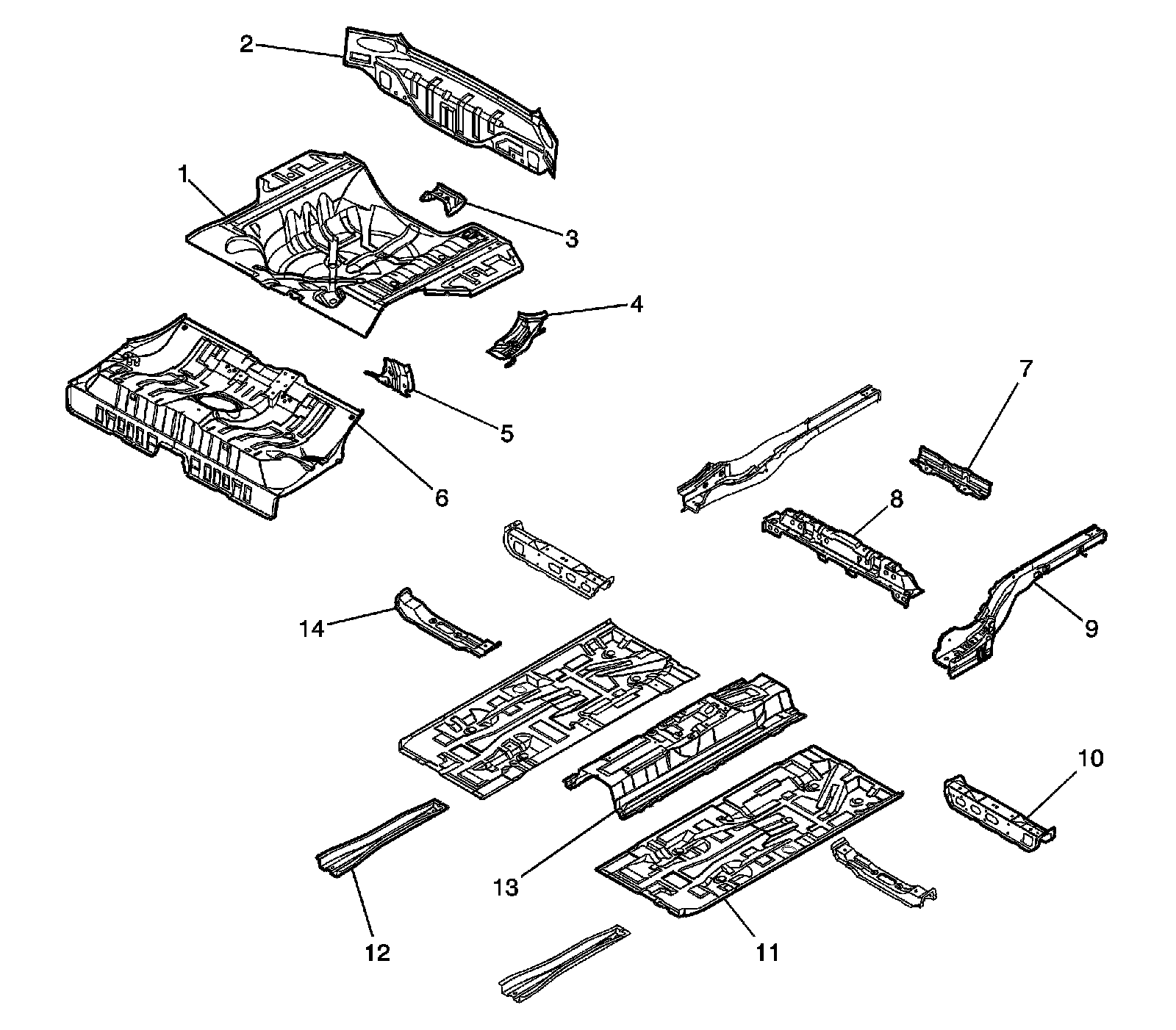

1 - Rear Floor Panel Rear
2 - Back Panel Lower
3 - Jack Bracket
4 - Rear Towing Eye Assembly
5 - Inner Brace Wheelhouse Lower
6 - Rear Floor Front Panel
7 - Rear Floor Center Crossmember
8 - Rear Floor Front Crossmember
9 - Rear Longitudinal Assembly
10 - Front Crossmember (Seat Rear)
11 - Front Floor Panel
12 - Floor Longitudinal
13 - Tunnel Assembly
14 - Front Crossmember (Seat Front)

4 of 4

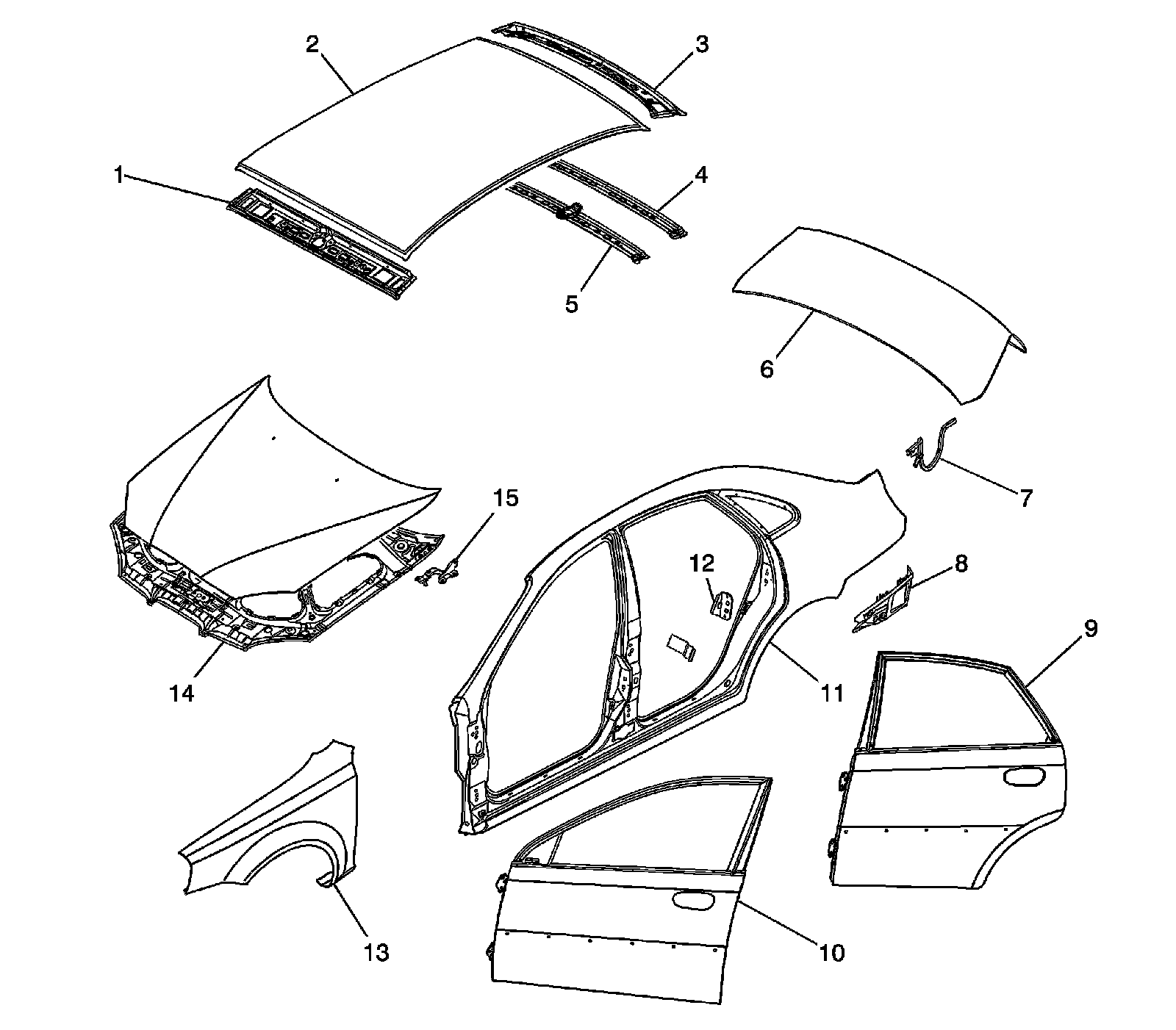

1 - Windshield Header Rail
2 - Roof Panel
3 - Roof Rear Frame
4 - Roof Rear Support
5 - Roof Front Support
6 - Trunk Lid
7 - Trunk Lid Hinge
8 - Side Outer Panel Extension
9 - Rear Door
10 - Front Door
11 - Side Panel Outer
12 - Striker Reinforcement
13 - Fender
14 - Hood Assembly
15 - Hood Hinge
