Speaker Replacement - Front Side Door Upper

Speaker Replacement - Front Side Door Upper

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

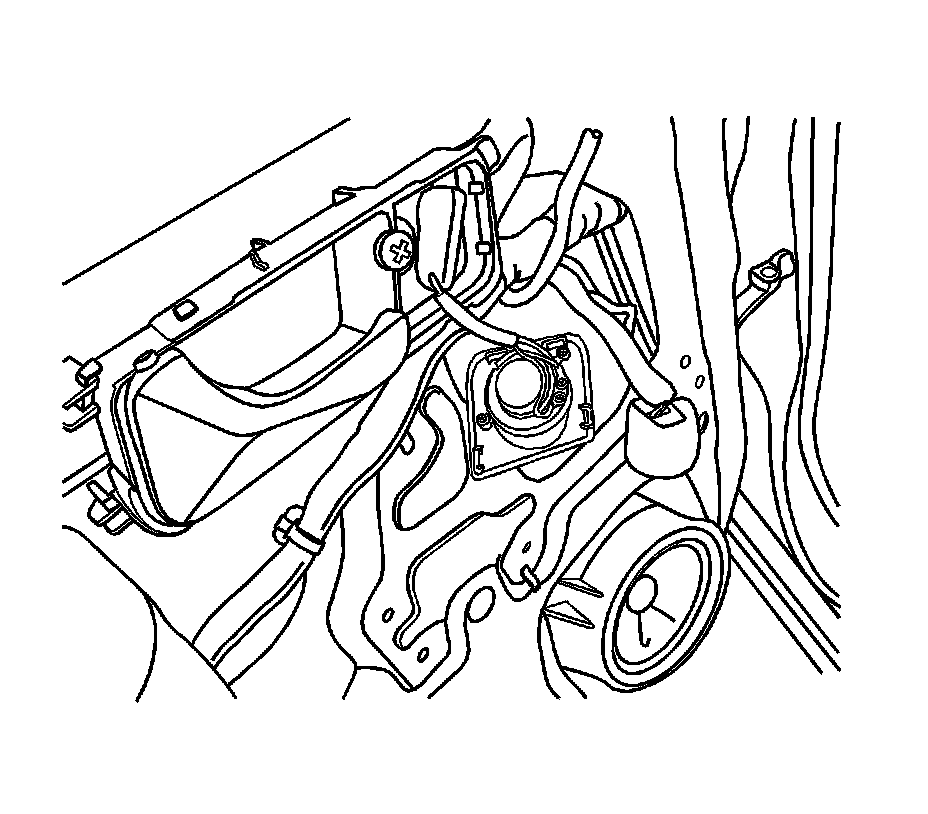

2. Remove the tweeter speaker by prying the tweeter speaker out of the door trim panel.
3. Disconnect the electrical connector.

Installation Procedure




1. Connect the electrical connector.
2. Install the tweeter speaker into the door trim panel.
3. Connect the negative battery cable.
