Radio Front Side Door Speaker Replacement

Radio Front Side Door Speaker Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement Front Side Door Trim Panel Replacement or Rear Door Trim Panel Replacement Service and Repair.
3. Disconnect the electrical connector.

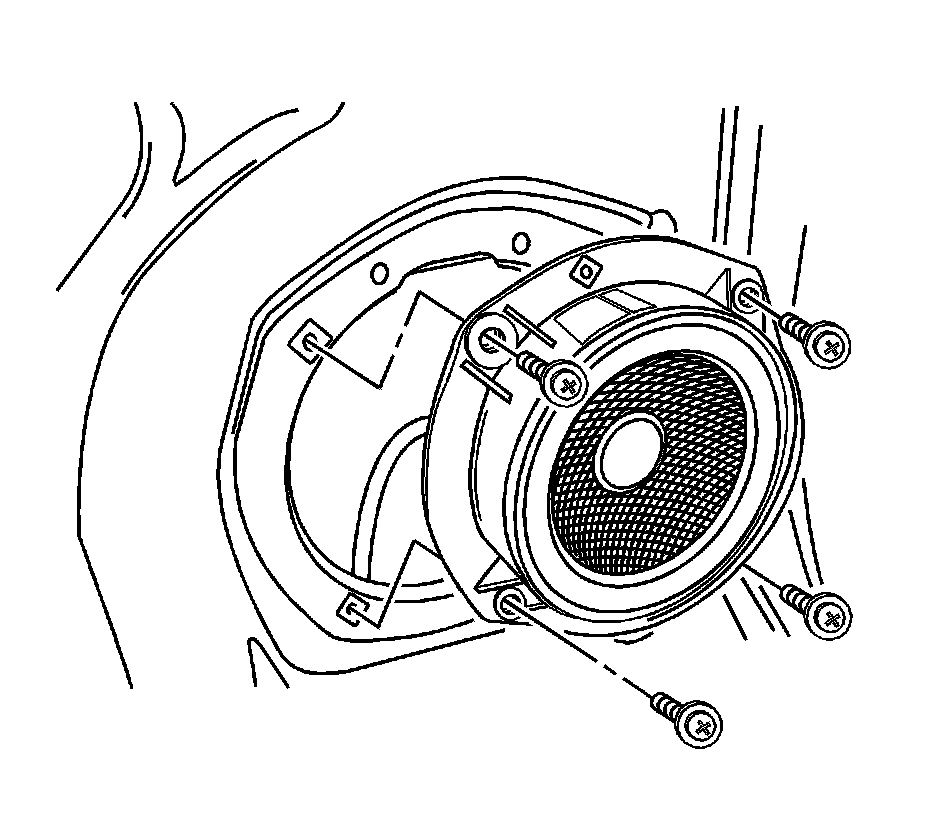

4. Remove the screws and the door speaker.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the door speaker with the screws.

Tighten the door speaker screws to 2 Nm (18 lb in).

2. Connect the electrical connector.
3. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement Front Side Door Trim Panel Replacement or Rear Door Trim Panel Replacement Service and Repair.
4. Connect the negative battery cable.
