Compact Disc Player (CD): Service and Repair

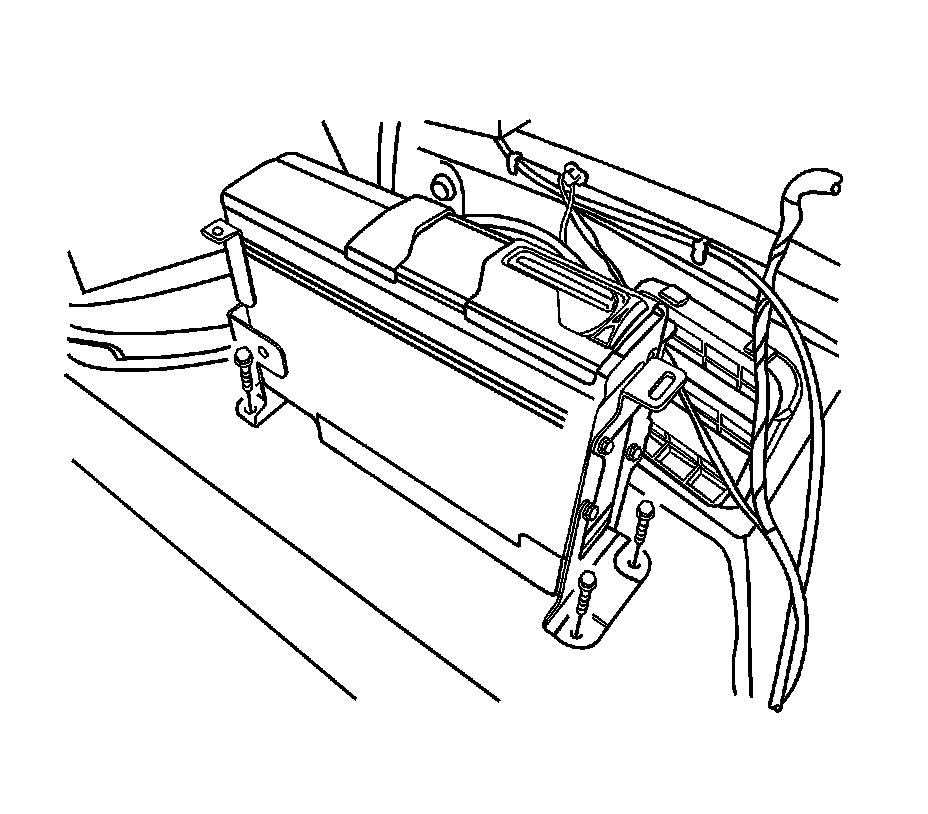

Remote Compact Disc Player Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Disconnect the CD changer electrical connector.
3. Remove the bolts and the CD changer.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the CD changer with the bolts.

Tighten the CD changer bolts to 6 Nm (53 lb in).

2. Connect the CD changer electrical connector.
3. Connect the negative battery cable.
