Accessories and Optional Equipment: Locations

Entertainment/Communication Component Views

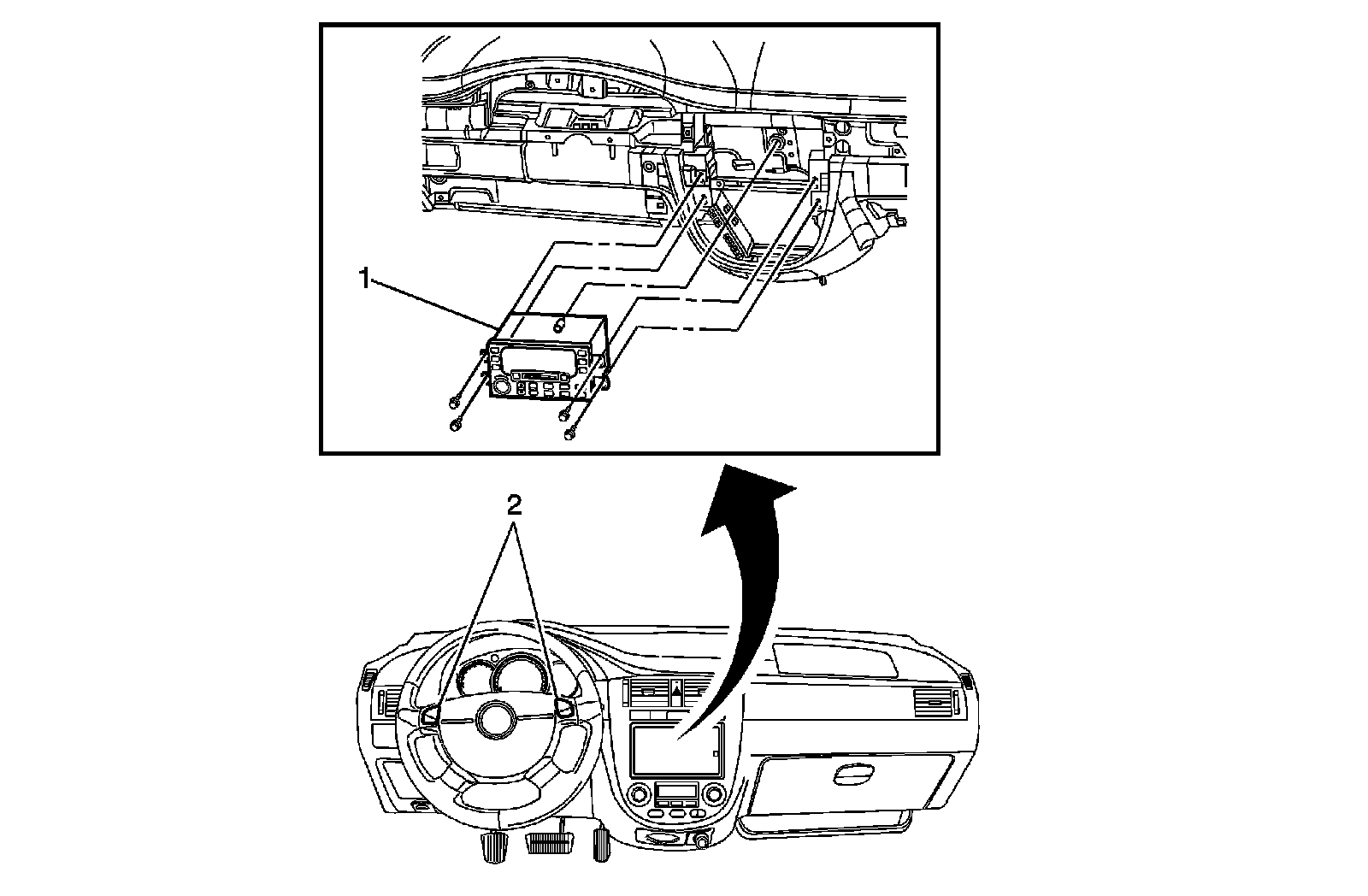

Radio, Horn Switch




1 - Radio
2 - Horn Switches

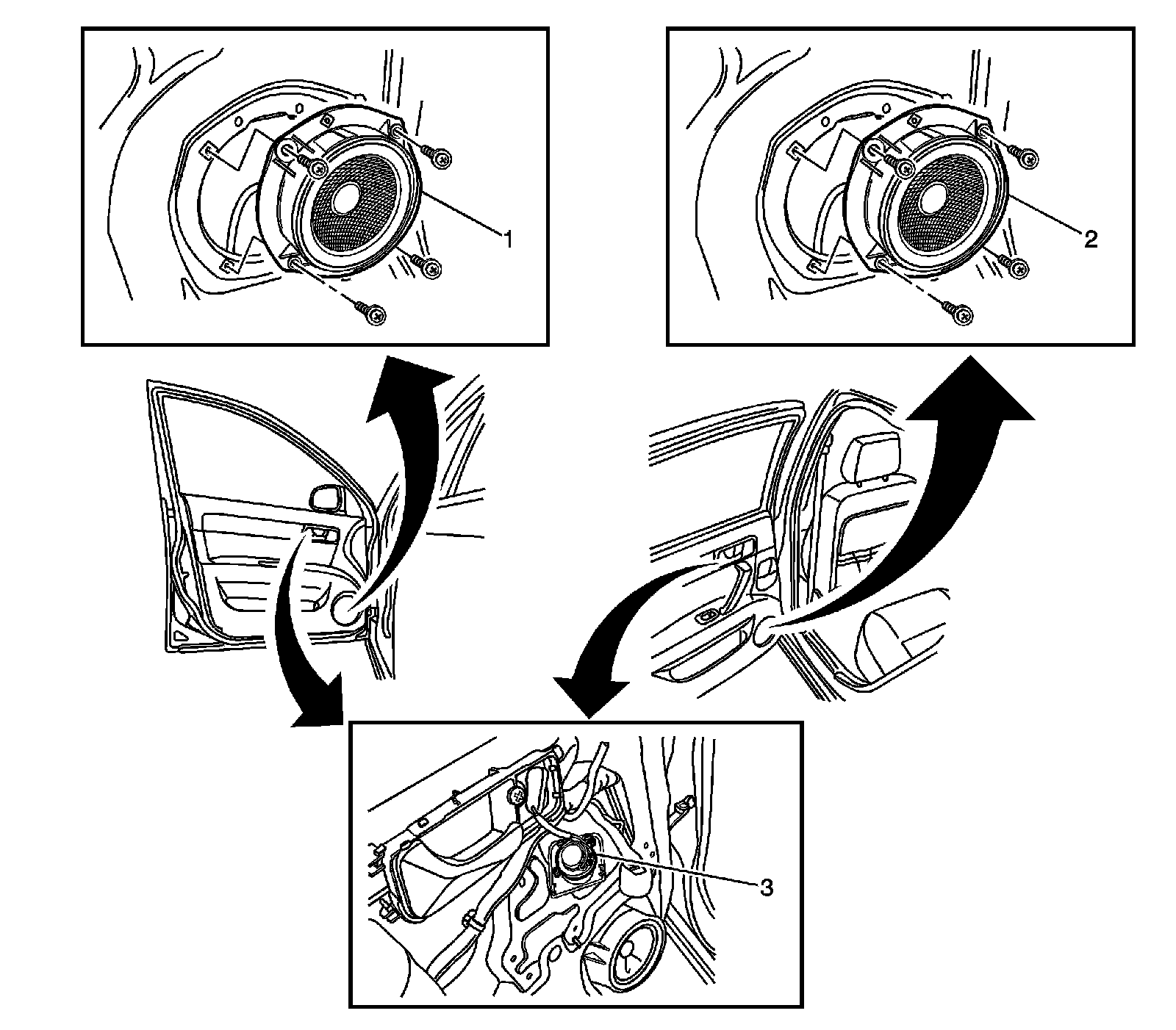

Speaker- Front and Rear, Speaker Tweeter - Front and Rear




1 - Speaker Front Door (Left and Right)
2 - Speaker Rear Door (Left and Right)
3 - Speaker Tweeter - Front and Rear Door (Left and Right)

Rear Defog Grid




1 - Rear Window (Glass Antenna)
2 - Rear Defroster
3 - Radio Antenna Module

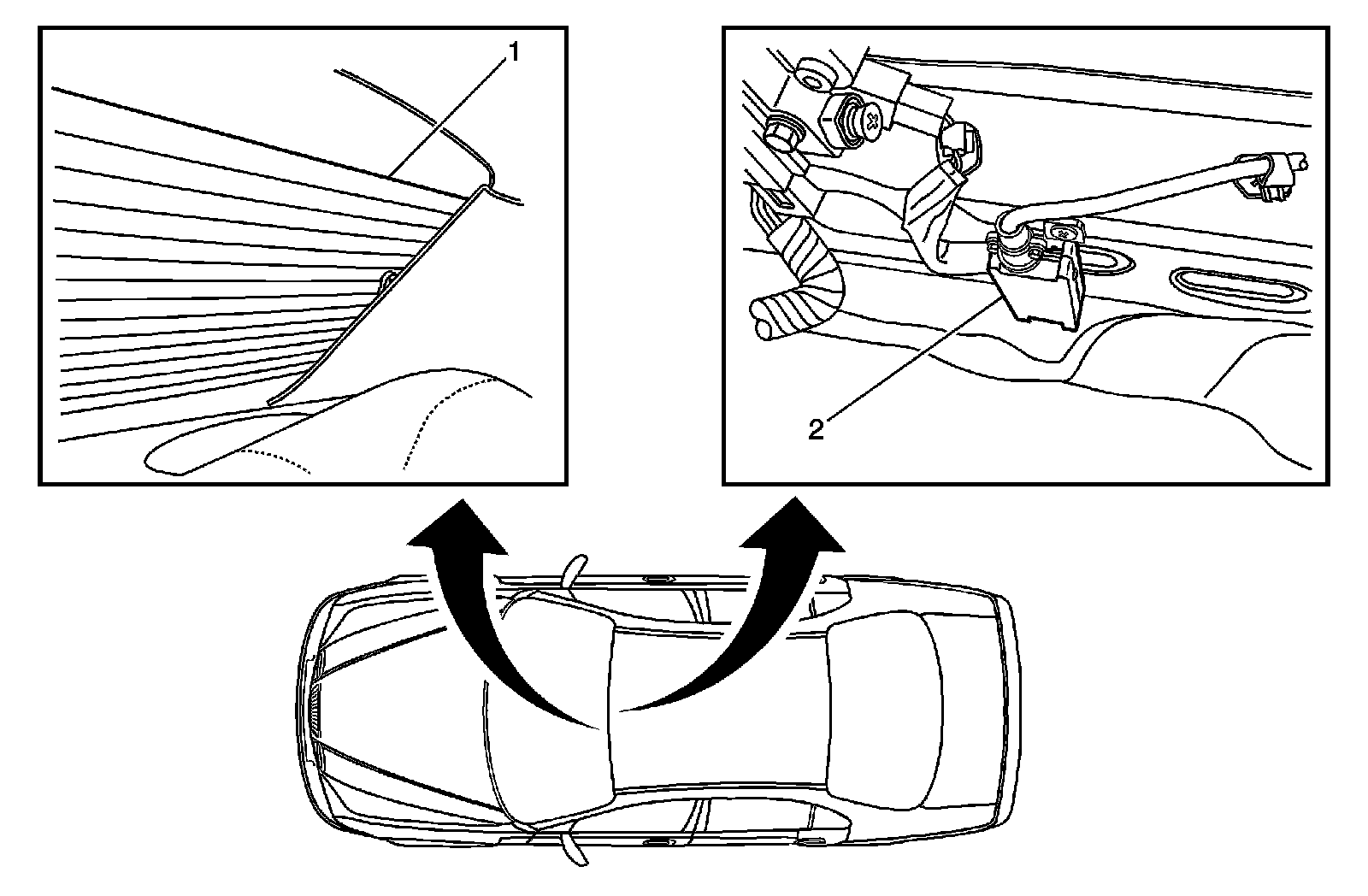

Radio Antenna (Notchback)




1 - Radio Antenna - Front
2 - Radio Antenna Module
