Electrical Diagrams




Remote Function Schematics

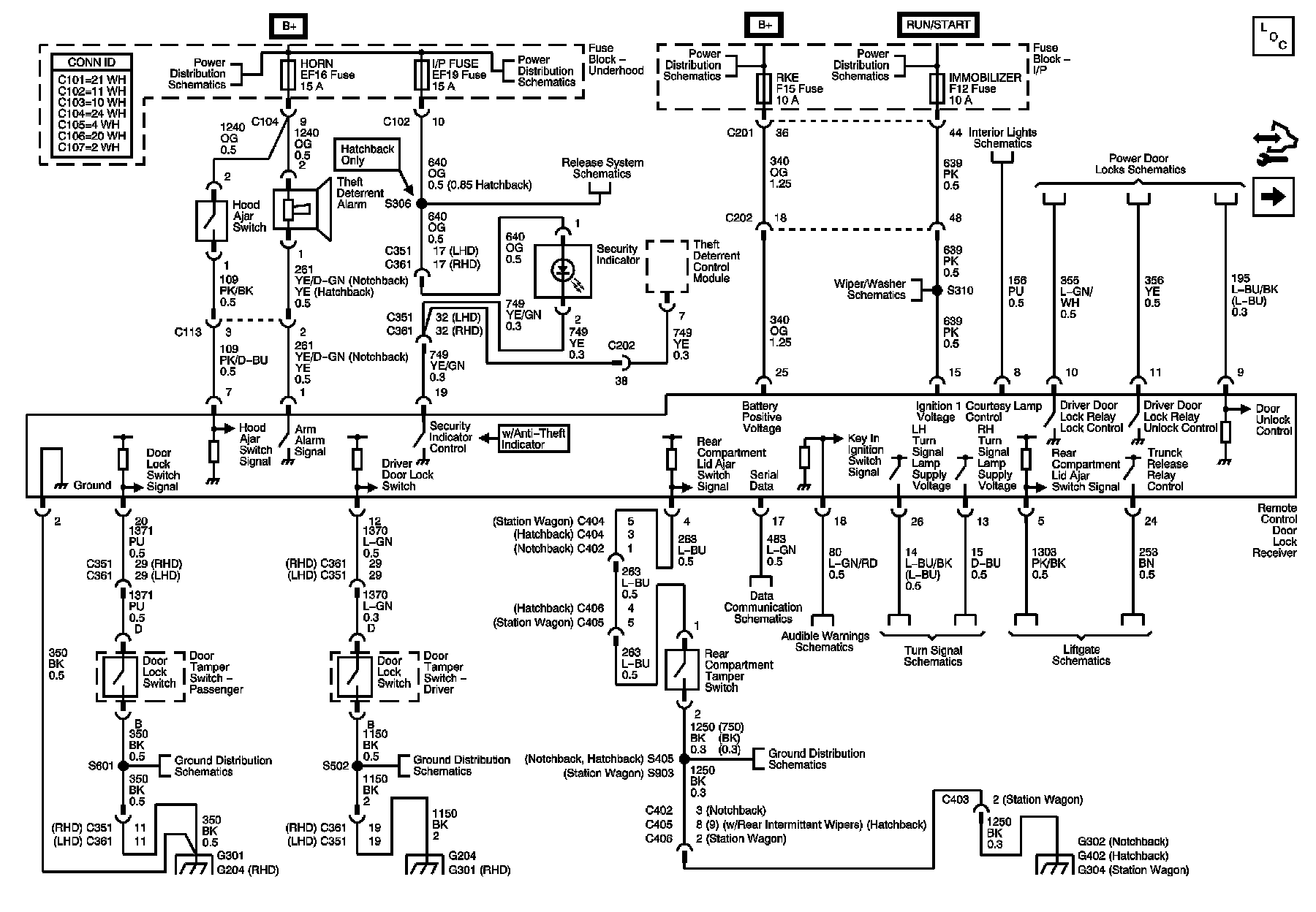

Remote Control Door LK Receiver

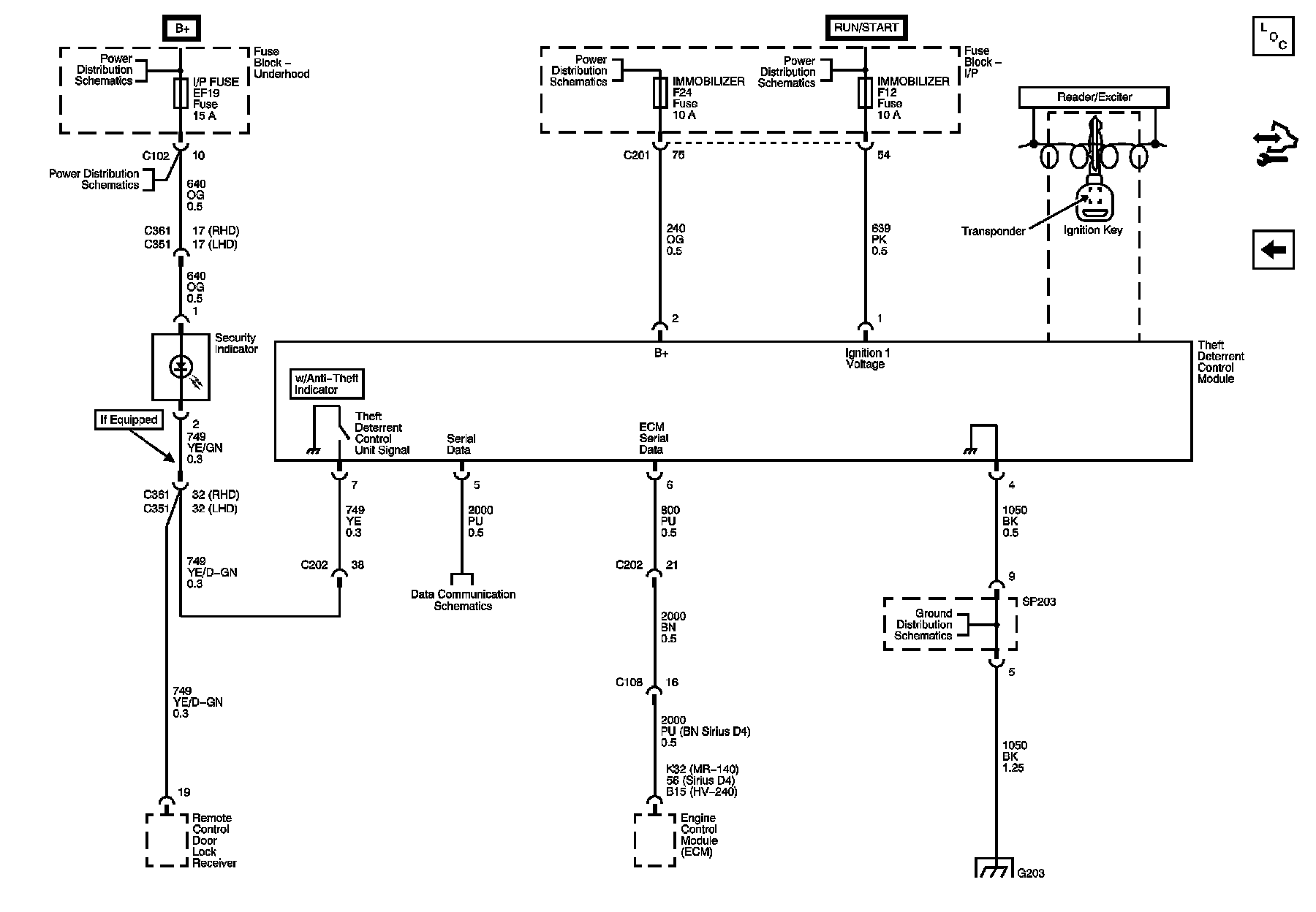

Theft Deterrent Control Module
