Alarm Horn: Service and Repair

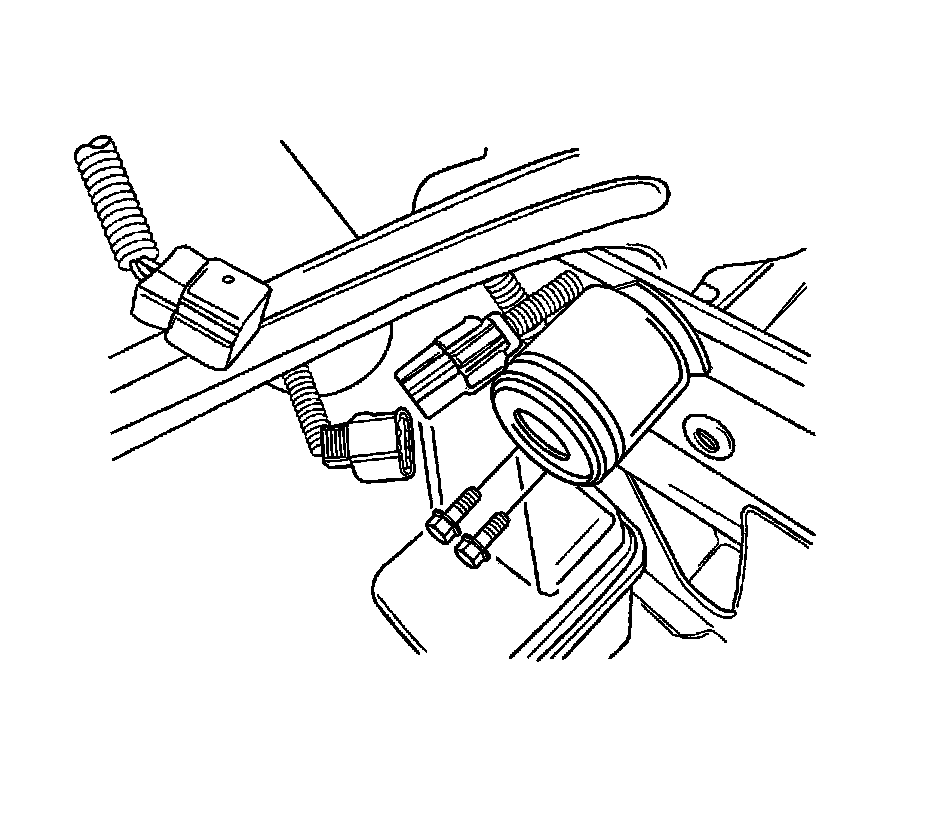

Theft Deterrent Alarm Replacement

Removal Procedure




1. Remove the theft deterrent alarm electrical connector.
2. Remove the theft deterrent alarm bracket mounting bolts and the theft deterrent alarm.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the theft deterrent alarm with the mounting bolts.

Tighten the theft deterrent alarm bracket mounting bolts to 8 Nm (71 lb in).

2. Connect the theft deterrent alarm electrical connector.
