Radio Antenna Module Replacement (Sedan)

Radio Antenna Module Replacement (Sedan)

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement (Sedan) Rear Quarter Upper Trim Panel Replacement (Sedan)Rear Quarter Upper Trim Panel Replacement (Wagon) Rear Quarter Upper Trim Panel Replacement (Wagon).

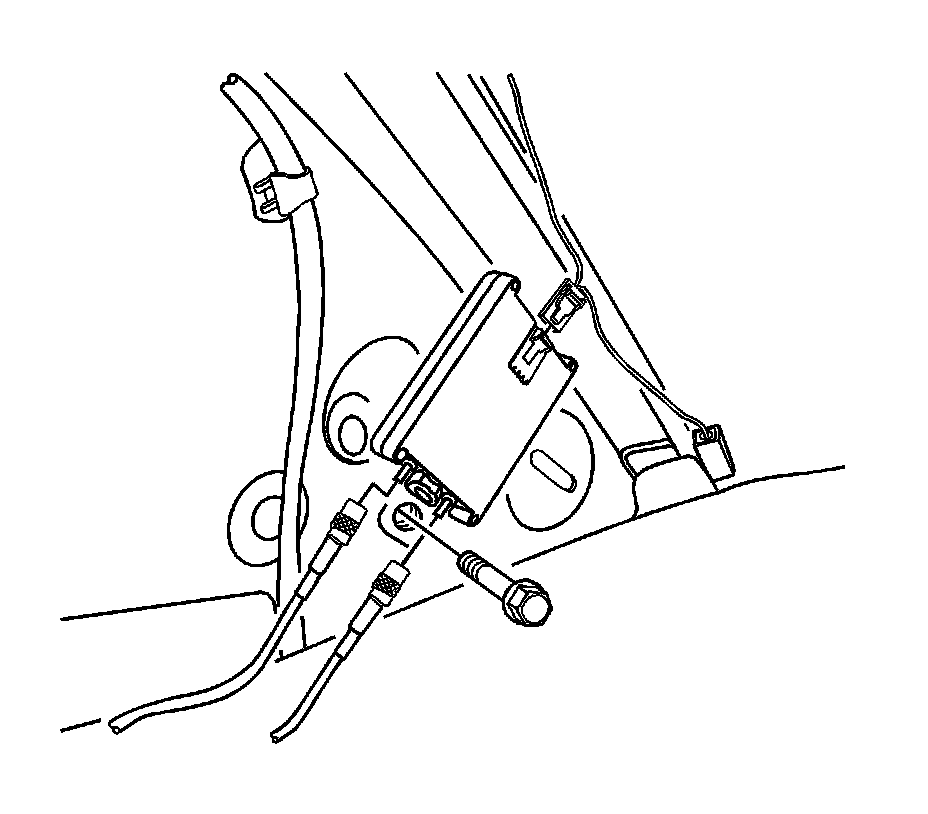

3. Disconnect the electrical connector.
4. Remove the screws and the glass antenna module.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the glass antenna module with the screws.

Tighten the glass antenna screws to 2 Nm (18 lb in).

2. Connect the electrical connectors.
3. Install the rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement (Sedan) Rear Quarter Upper Trim Panel Replacement (Sedan)Rear Quarter Upper Trim Panel Replacement (Wagon) Rear Quarter Upper Trim Panel Replacement (Wagon).
4. Connect the negative battery cable.
