ZF 4HP 16 - Automatic Transmission (Non-European or N. American Emissions)

DTC P1791 (Non-European or N. American Emissions)

Circuit Description

The transmission control module (TCM) is an electronic device that monitors inputs to control various transaxle function, including shift quality and transaxle sensors, switches, and components to process for use within its control program. Based on this input information, the TCM controls various transaxle output functions and devices.

The following information transmits between the TCM and the engine control module (ECM) through the DISCREET line:

* The engine speed
* The engine output torque reduction signal

DTC Descriptor

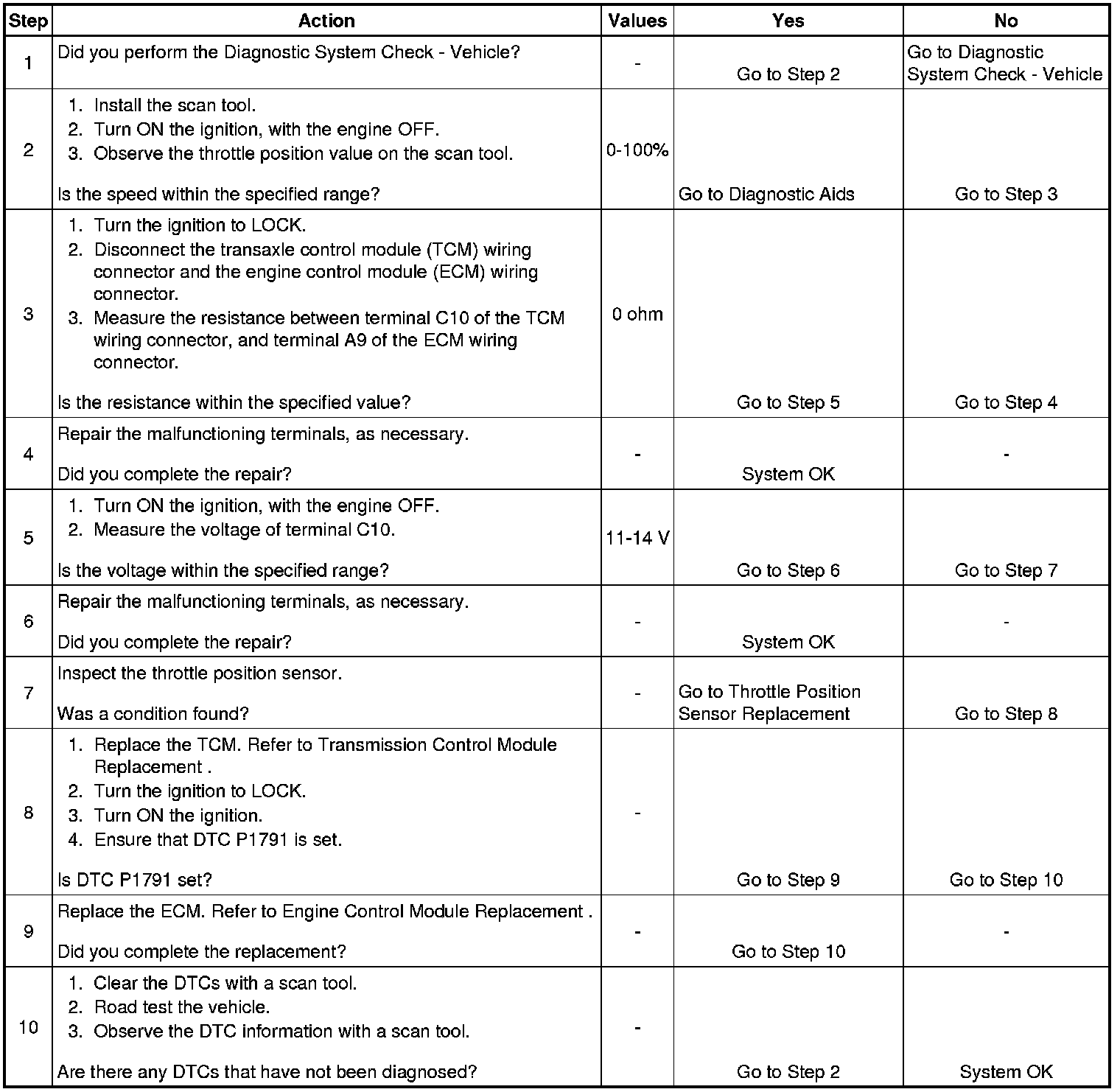

This diagnostic procedure supports the following DTC:

DTC P1791 Throttle/Pedal Position Signal

Conditions for Setting the DTC

* The system voltage is too high or too low.
* The DISCREET transmitting wiring harness is shorted or open.
* The TCM or ECM is defective.

Action Taken When the DTC Sets

* No lamp control is required, but diagnostic information should be stored immediately when the malfunction is detected.
* Adjustable value, calculated over the substitute map throttle position, such as engine speed or engine torque

Conditions for Clearing the DTC

* A history DTC will clear after 40 consecutive warm-up cycles without a fault.
* Using a scan tool can clear history DTCs.
