ZF 4HP 16 - Automatic Transmission (European and N. American Emissions)

DTC P0705 (European and N. American Emissions)

Circuit Description

The transmission range (TR) switch is located on the selector shaft and informs the transmission control module (TCM) of the current selector lever position P-R-N-D-3-2-1.

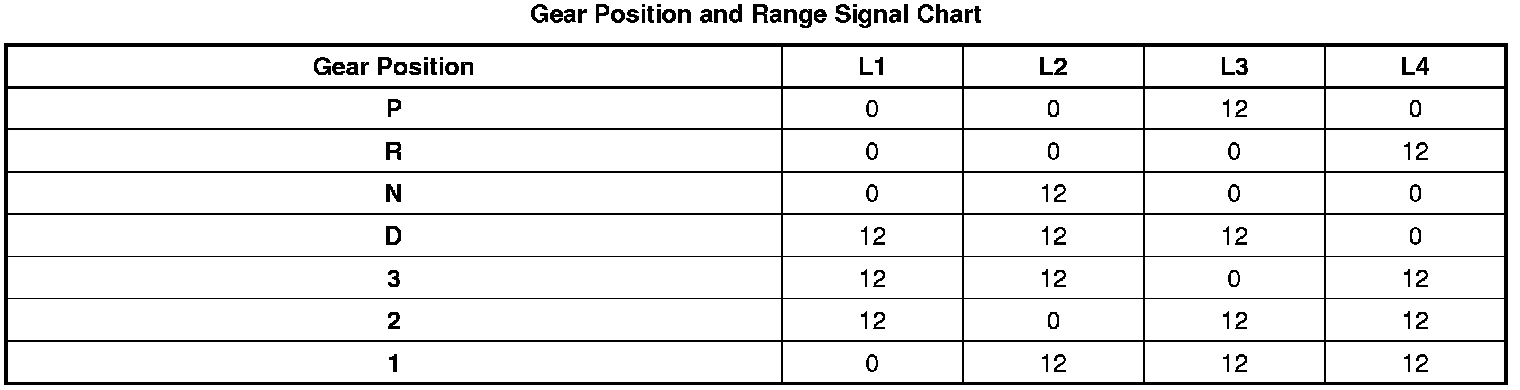

The selector lever position is transmitted to the TCM in encoded form along 4 lines. The encoding is such that malfunctions in the connecting lead are identified.

The TR switch is located on the selector shaft, which is connected to the selector lever via a pull cable. In addition, the TR switch controls the starter interlock, the reverse lights and the selector lever position indicator on the instrument panel.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC P0705 Transmission Range (TR) Switch Circuit

Conditions for Setting the DTC

* TR switch stuck to closed
* TR switch wiring harness shortage to ground
* TR switch wiring harness shortage to power
* Immediately after the above condition occurs

Action Taken When the DTC Sets

* The malfunction indicator lamp (MIL) will illuminate.
* The TCM will record operating conditions at the time the diagnostic fails. This information will be stored in the Failure Records buffer.
* Adopt Emergency/ Substitute mode and constant 4th gear.

Conditions for Clearing the MIL/DTC

* The MIL will turn OFF when the malfunction has not occurred after 3 ignition cycles.
* A history DTC will clear after 40 consecutive warm-up cycles without a fault.
* Using a scan tool can clear history DTCs.

Diagnostic Aids

When DTC P0705 sets, the possible cause of TR switch
