P0650
DTC P0650
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Strategy Based Diagnosis Strategy Based Diagnosis
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions
DTC Descriptor
DTC P0650
- Malfunction Indicator Lamp (MIL) Control Circuit

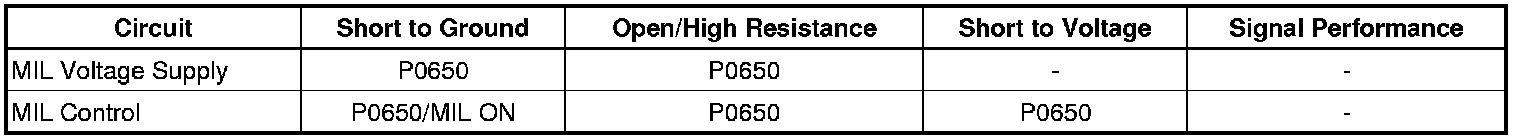

Diagnostic Fault Information
Circuit/System Description
The MIL is located on the instrument panel (IP) cluster. Ignition 1 voltage is supplied directly to the malfunction indicator lamp (MIL). The engine control module (ECM) turns the MIL ON by grounding the MIL control circuit. There should be a steady MIL with the ignition ON and the engine OFF.
Conditions for Running the DTC
* The engine is operating.
* The ignition 1 voltage is between 7.5-16 volts.
* The DTCs runs continuously once the above conditions are met.
Conditions for Setting the DTC
The ECM detects the MIL control circuit is open or shorted to ground or voltage.
Action Taken When the DTC Sets
DTC P0650 is a Type C DTC.
Conditions for Clearing the DTC
DTC P0650 is a Type C DTC.
Reference Information
Schematic Reference
Engine Controls Schematics (w/Throttle Actuator Controls) Electrical DiagramsEngine Controls Schematics (w/o Throttle Actuator Control) Electrical Diagrams
Connector End View Reference
* Engine Control Module Connector End Views (w/ Throttle Actuator Control) Engine Control Module Connector End Views (w/ Throttle Actuator Control)Engine Control Module Connector End Views (w/o Throttle Actuator Control) Engine Control Module Connector End Views (w/o Throttle Actuator Control)
* Engine Controls Connector End Views (w/ Throttle Actuator Control) Engine Controls Connector End Views (w/ Throttle Actuator Control)Engine Controls Connector End Views (w/o Throttle Actuator Control) Engine Controls Connector End Views (w/o Throttle Actuator Control)
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
DTC Type Reference
Powertrain Diagnostic Trouble Code (DTC) Type Definitions Powertrain Diagnostic Trouble Code (DTC) Type Definitions
Scan Tool Reference
* Scan Tool Data List (w/ Throttle Actuator Control) Scan Tool Data List (w/ Throttle Actuator Control)Scan Tool Data List (w/o Throttle Actuator Control) Scan Tool Data List (w/o Throttle Actuator Control)
* Scan Tool Data Definitions (w/ Throttle Actuator Control) Scan Tool Data Definitions (w/ Throttle Actuator Control)Scan Tool Data Definitions (w/o Throttle Actuator Control) Scan Tool Data Definitions (w/o Throttle Actuator Control)
* Scan Tool Output Controls (w/ Throttle Actuator Control) Scan Tool Output Controls (w/ Throttle Actuator Control)Scan Tool Output Controls (w/o Throttle Actuator Control) Scan Tool Output Controls (w/o Throttle Actuator Control)
Circuit/System Verification
1. Engine idling, command the MIL ON and OFF with a scan tool. The MIL should turn ON and OFF.
2. Observe the DTC information with a scan tool. DTC P0650 should not set.
3. If the vehicle passes the Circuit/System Verification Test, then operate the vehicle within the conditions for running the DTC. You may also operate the vehicle within the conditions that are captured in the Freeze Frame/Failure Records Data List.
Circuit/System Testing
1. If any other indicators are inoperative on the instrument panel (IP) cluster, refer to Symptoms - Instrument Panel, Gages and Console - Symptoms - Instrument Panel, Gages and Console.
2. Ignition OFF, disconnect the ECM harness connector.
3. Ignition ON, the MIL should not illuminate.
• If the MIL illuminates, test the MIL control circuit for a short to ground. If the circuit test normal, replace the instrument panel (IP) cluster.
4. Ignition ON, connect a 3-amp fused jumper wire between the MIL control circuit and ground. The MIL should illuminate.
• If the MIL does not illuminate, test the MIL control circuit for a short to voltage or an open/high resistance. If the circuit test normal, replace the instrument panel (IP) cluster.
• If the MIL illuminates, inspect for a poor connection or replace the ECM.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
* Instrument Cluster Replacement Service and Repair
* Control Module References Control Module References for engine control module replacement, setup, and programming
