ZF 4HP 16 - Automatic Transmission (European and N. American Emissions)

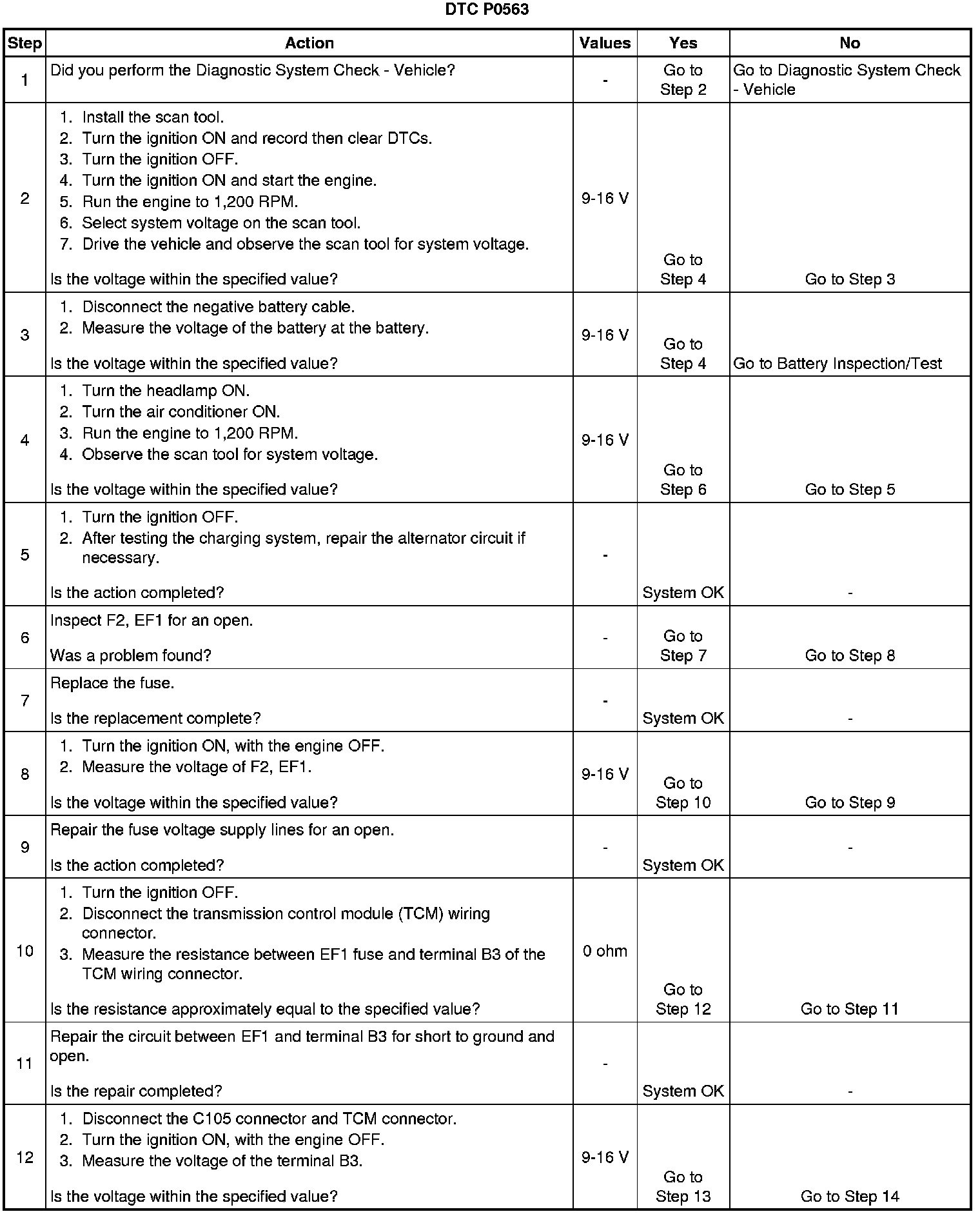

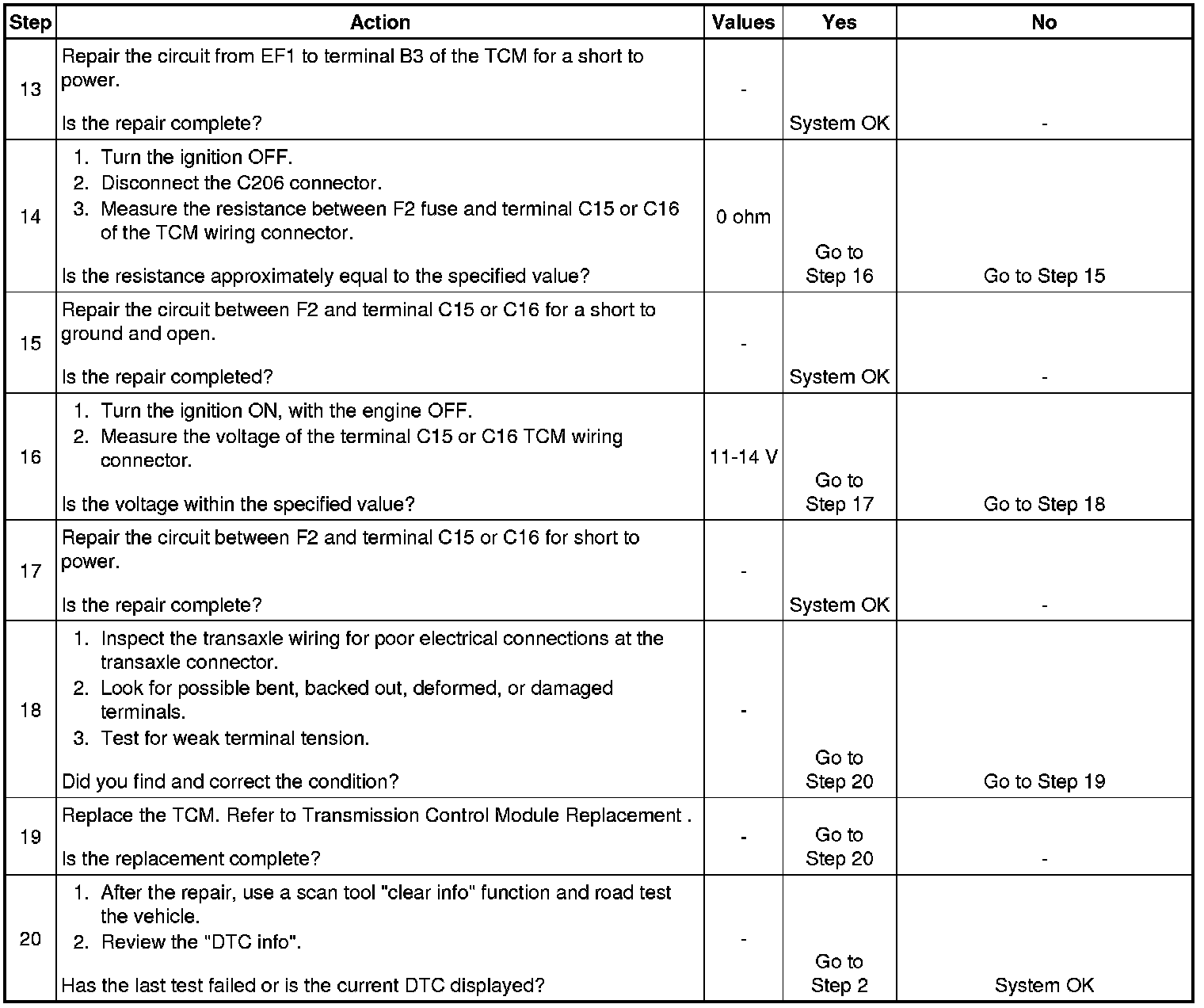

DTC P0563 (European and N. American Emissions)

Circuit Description

The transmission control module (TCM) is an electronic device which monitors inputs to control various transaxle functions including shift quality and transaxle sensors, switches, and components to process for use within the control program. Based on this input information, the TCM controls various transaxle output functions and devices.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC P0563 System Voltage High

Conditions for Setting the DTC

* System voltage is greater than 16 volts.
* Transaxle input voltage is too high.
* Immediately after the above condition occurs

Action Taken When the DTC Sets

* The malfunction indicator lamp (MIL) will illuminate.
* The TCM will record operating conditions at the time the diagnostic fails. This information will be stored in the Failure Records buffer.
* Adopt Emergency/Substitute mode and constant 4th gear by hydraulic control.
* After ignition OFF/ON : 3rd gear by hydraulic control. P, R and N also possible.
* Power supply cut off to the pressure control solenoid valve.

Conditions for Clearing the MIL/DTC

* The MIL will turn OFF when the malfunction has not occurred after 3 ignition cycles.
* A history DTC will clear after 40 consecutive warm-up cycles without a fault.
* Using a scan tool can clear history DTCs.
