Engine Electrical (w/Delphi Controller)

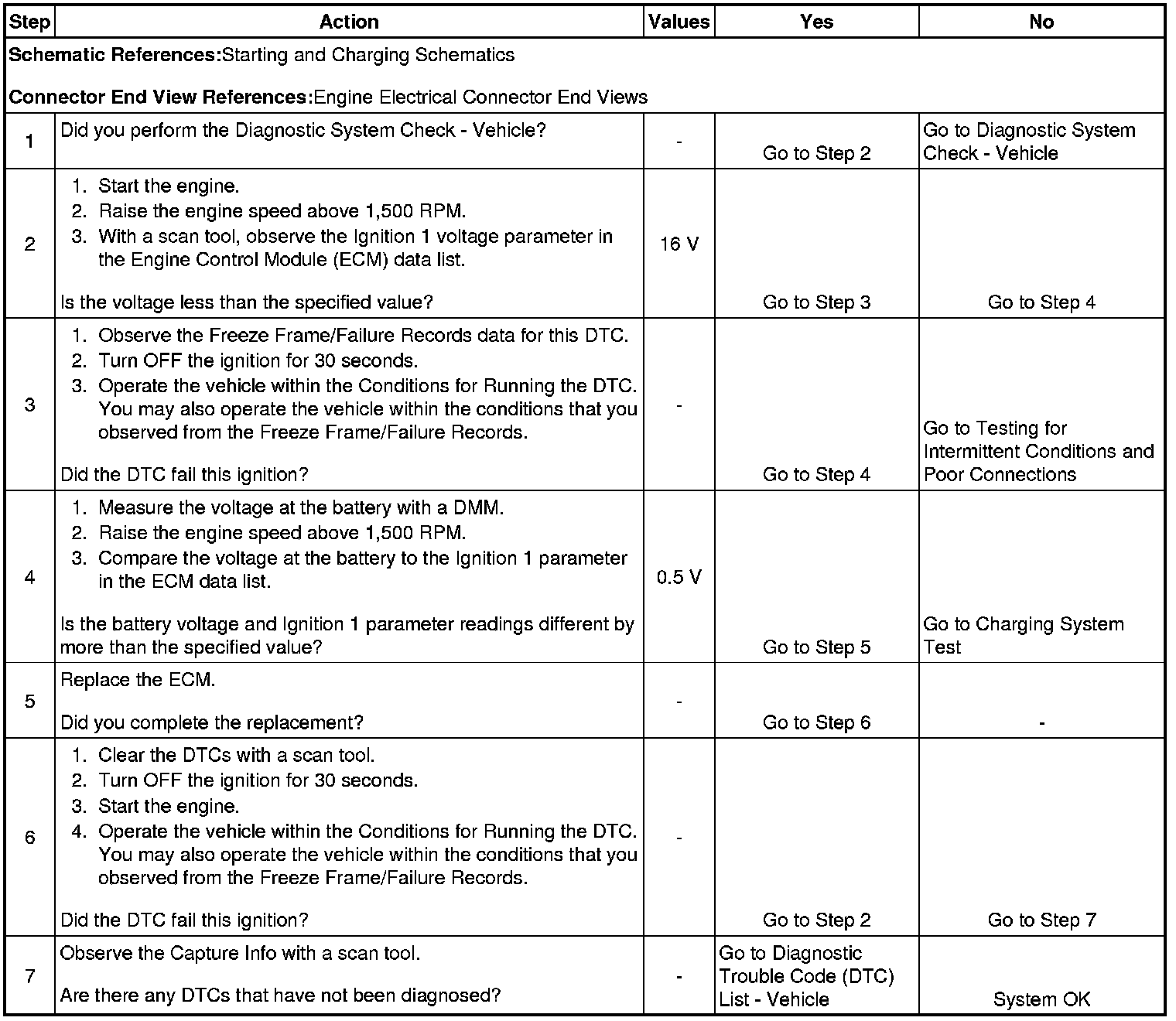

DTC P0563 (w/Delphi Controller)

Circuit Description

The engine control module (ECM) uses the ignition 1 voltage circuit to monitor system voltage. Voltage that is out of range will cause damage to components and incorrect input readings. If the ECM detects an excessively high system voltage, DTC P0563 will set.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC P0563 System Voltage High

Conditions for Running the DTC

* The ignition is ON, with the engine OFF.
* DTC P0563 runs continuously once the above condition is met.

Conditions for Setting the DTC

The ECM detects a system voltage above 16 volts for more than 5 minutes.

Action Taken When the DTC Sets

* The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
* The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

Conditions for Clearing the MIL/DTC

* The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
* A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
* A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
* Clear the MIL and the DTC with a scan tool.
