DTC 056

DTC 056

Circuit Description

When the ignition switch is turned to ON, the sensing and diagnostic module (SDM) will perform a turn-on test to diagnose critical malfunctions within the SDM itself.

Upon passing this test, ignition and deployment loop voltages are measured to ensure they are within the normal voltage ranges. The SDM monitors the voltages at the driver low and the passenger low to detect shorts to ground or voltage in the deploy loops. The SDM inspects the wiring connection to the passenger side impact module by letting the infinitesimal current flow through the internal circuit and verify the resistance.

DTC Descriptor

This diagnostic procedure supports the following DTC:

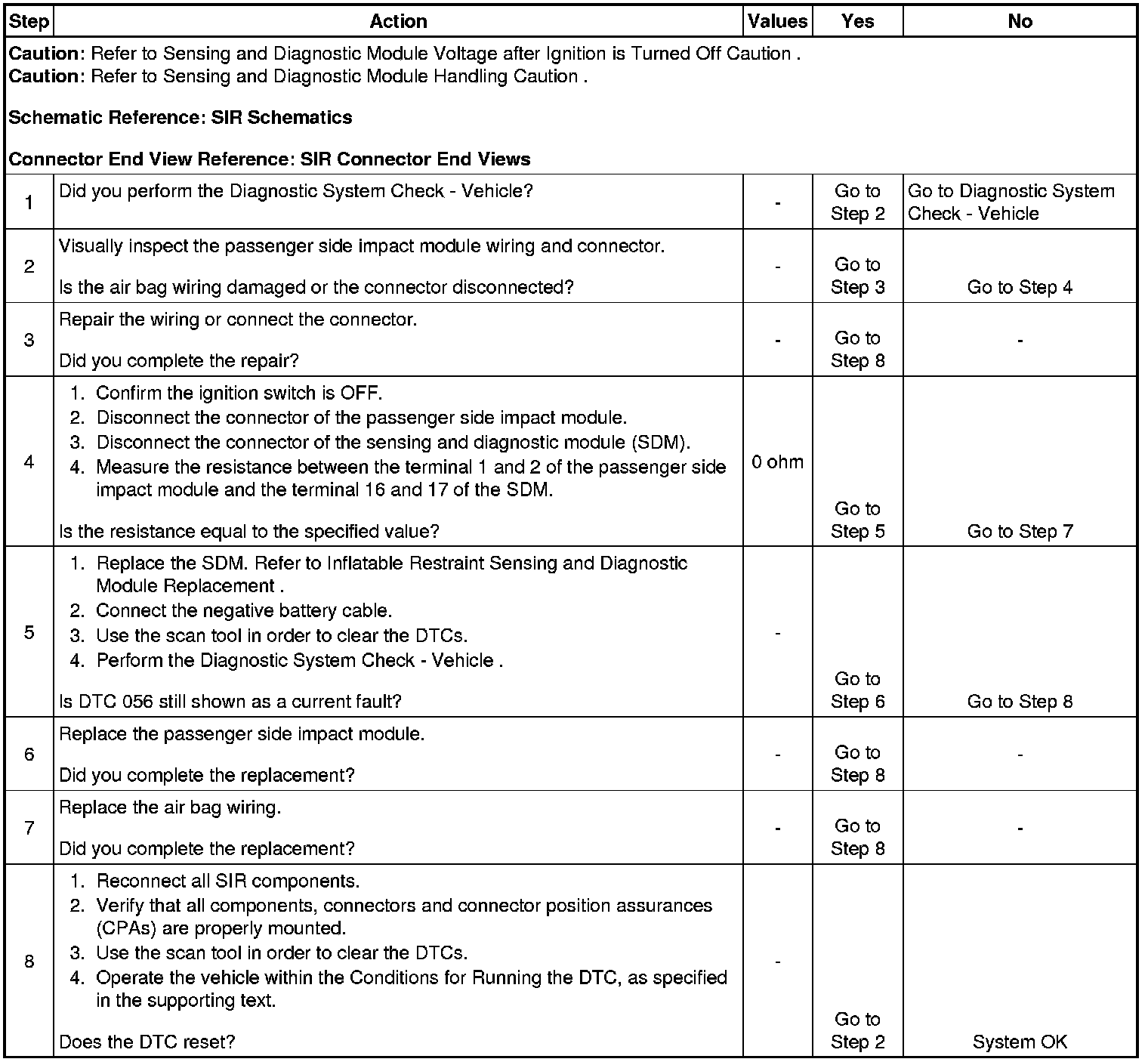

DTC 056 Right Side Air Bag Deployment Loop Resistance Too High

Conditions for Running the DTC

Ignition voltage is within the normal operating voltage range.

Conditions for Setting the DTC

The resistance of the passenger side impact module deployment loop is over 2.8 ohms.

Action Taken When the DTC Sets

The SDM commands the AIR BAG indicator ON.

Conditions for Clearing the DTC

The condition responsible for setting the DTC no longer exists and the scan tool Clear DTCs function is used.
