DTC 053

DTC 053

Circuit Description

When the ignition switch is turned to ON, the sensing and diagnostic module (SDM) will perform a turn-on test to diagnose critical malfunctions within the SDM itself.

Upon passing this test, ignition and deployment loop voltages are measured to ensure that they are within the normal voltage ranges. The SDM monitors the voltages at the driver low and the passenger low to detect shorts to ground or voltage in the deployment loops.

DTC Descriptor

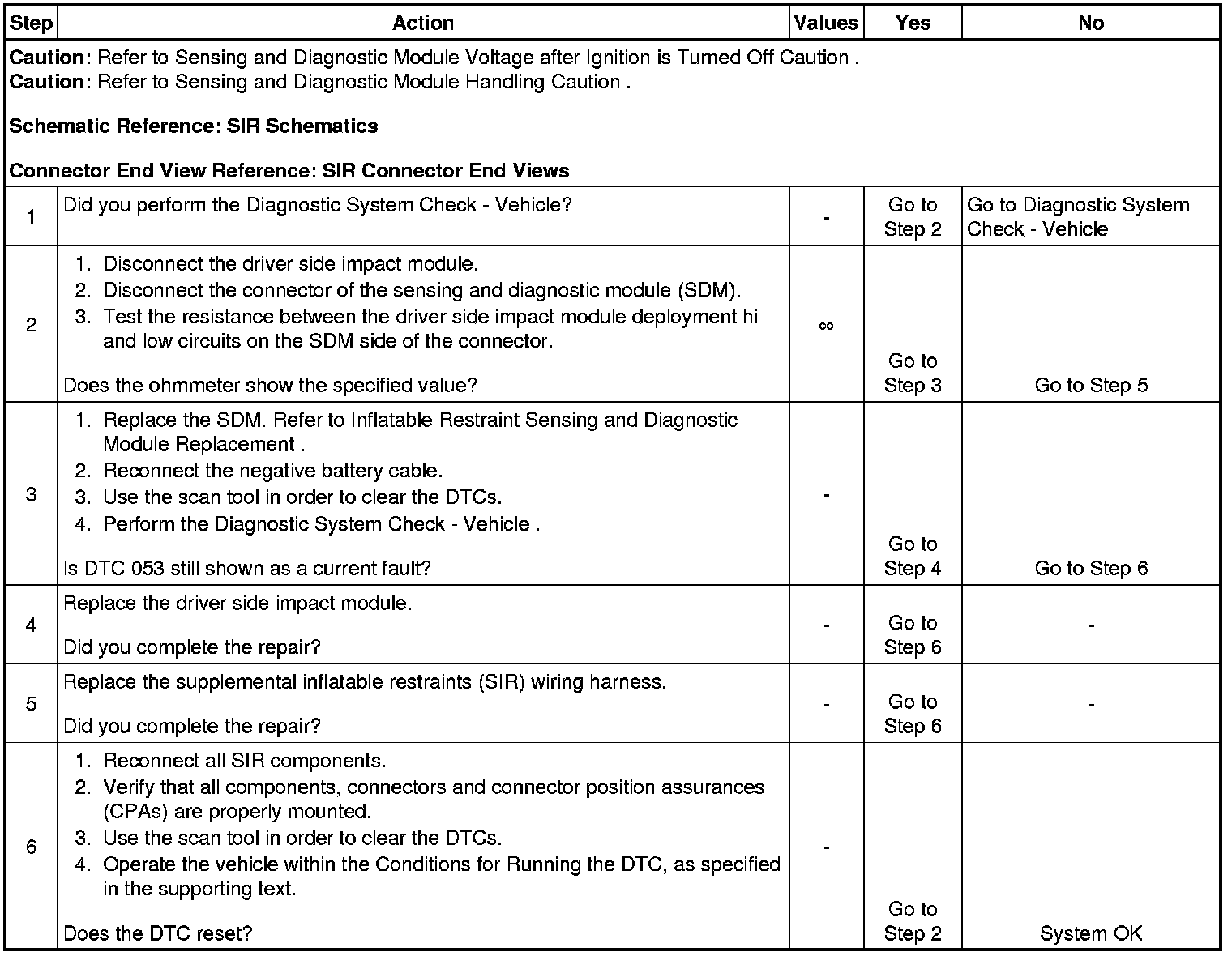

This diagnostic procedure supports the following DTC:

DTC 053 Left Side Air Bag Deployment Loop Resistance Too Low

Conditions for Running the DTC

Ignition voltage is within the normal operating voltage range.

Conditions for Setting the DTC

* The resistance of the driver side impact module deployment loop is lower than 1.4 ohms.
* The shorting bar is damaged and then the SDM must be replaced.

Action Taken When the DTC Sets

The SDM commands the AIR BAG indicator ON.

Conditions for Clearing the DTC

The condition responsible for setting the DTC no longer exists and the scan tool Clear DTCs function is used.
