DTC 052

DTC 052

Circuit Description

When the ignition switch is turned to ON, the sensing and diagnostic module (SDM) will perform a turn-on test to diagnose critical malfunctions within the SDM itself.

Upon passing this test, ignition and deployment loop voltages are measured to ensure that they are within the normal voltage ranges. The SDM monitors the voltages at the driver low and passenger low to detect shorts to ground or voltage in the deployment loops.

DTC Descriptor

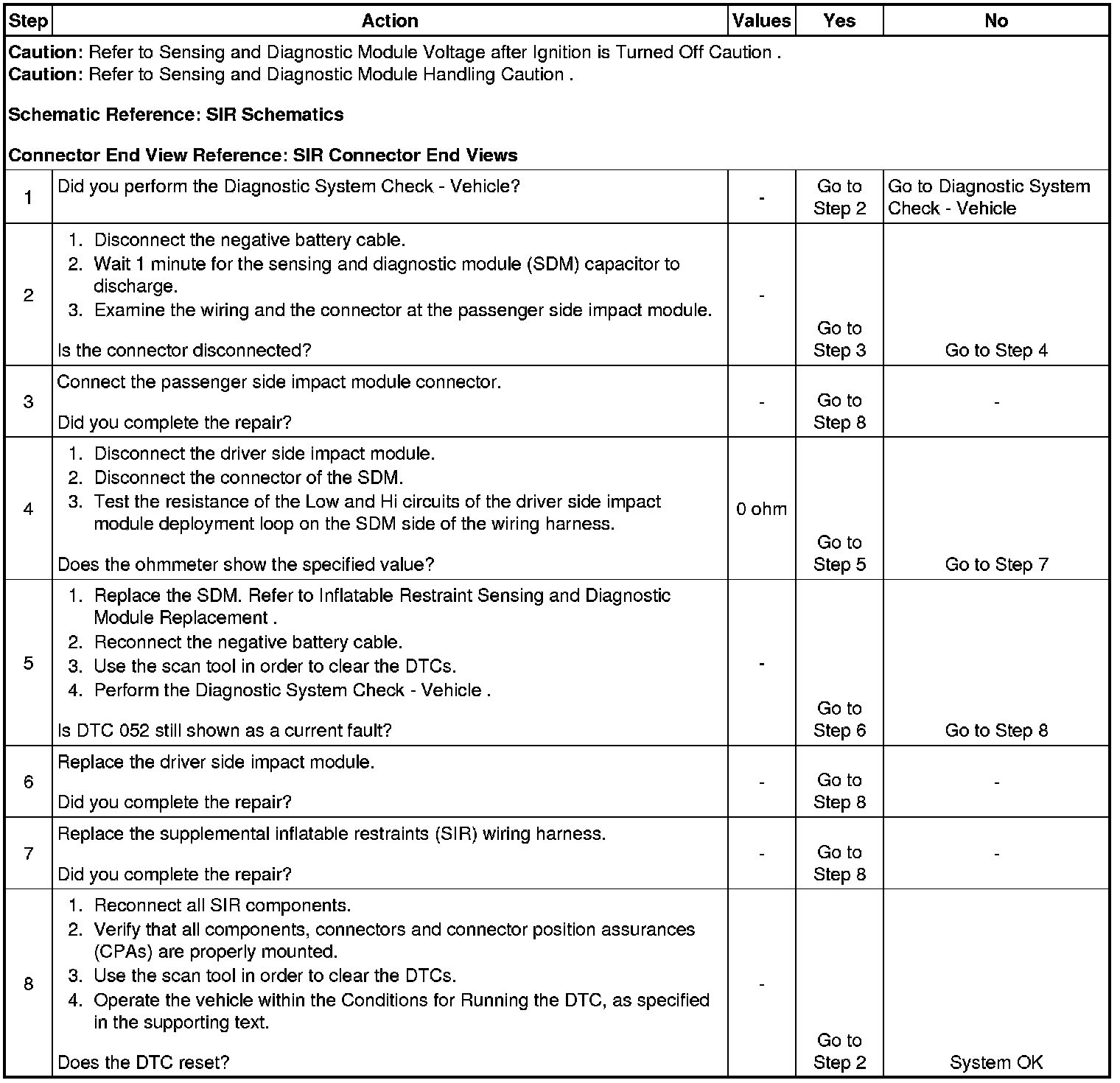

This diagnostic procedure supports the following DTC:

DTC 052 Left Side Air Bag Deployment Loop Resistance Too High

Conditions for Running the DTC

Ignition voltage is within the normal operating voltage range.

Conditions for Setting the DTC

The resistance of the driver side impact module deployment loop is higher than 2.7 ohms.

Action Taken When the DTC Sets

The SDM commands the AIR BAG indicator ON.

Conditions for Clearing the DTC

The condition responsible for setting the DTC no longer exists and the scan tool Clear DTCs function is used.
