DTC 038

DTC 038

Circuit Description

When the ignition switch is turned to ON, the sensing and diagnostic module (SDM) will perform a turn-on test to diagnose critical malfunctions within the SDM itself.

If the SDM has been used 5 times for 5 explosions of belt pretensioners or side impact modules, the SDM should also be replaced.

DTC Descriptor

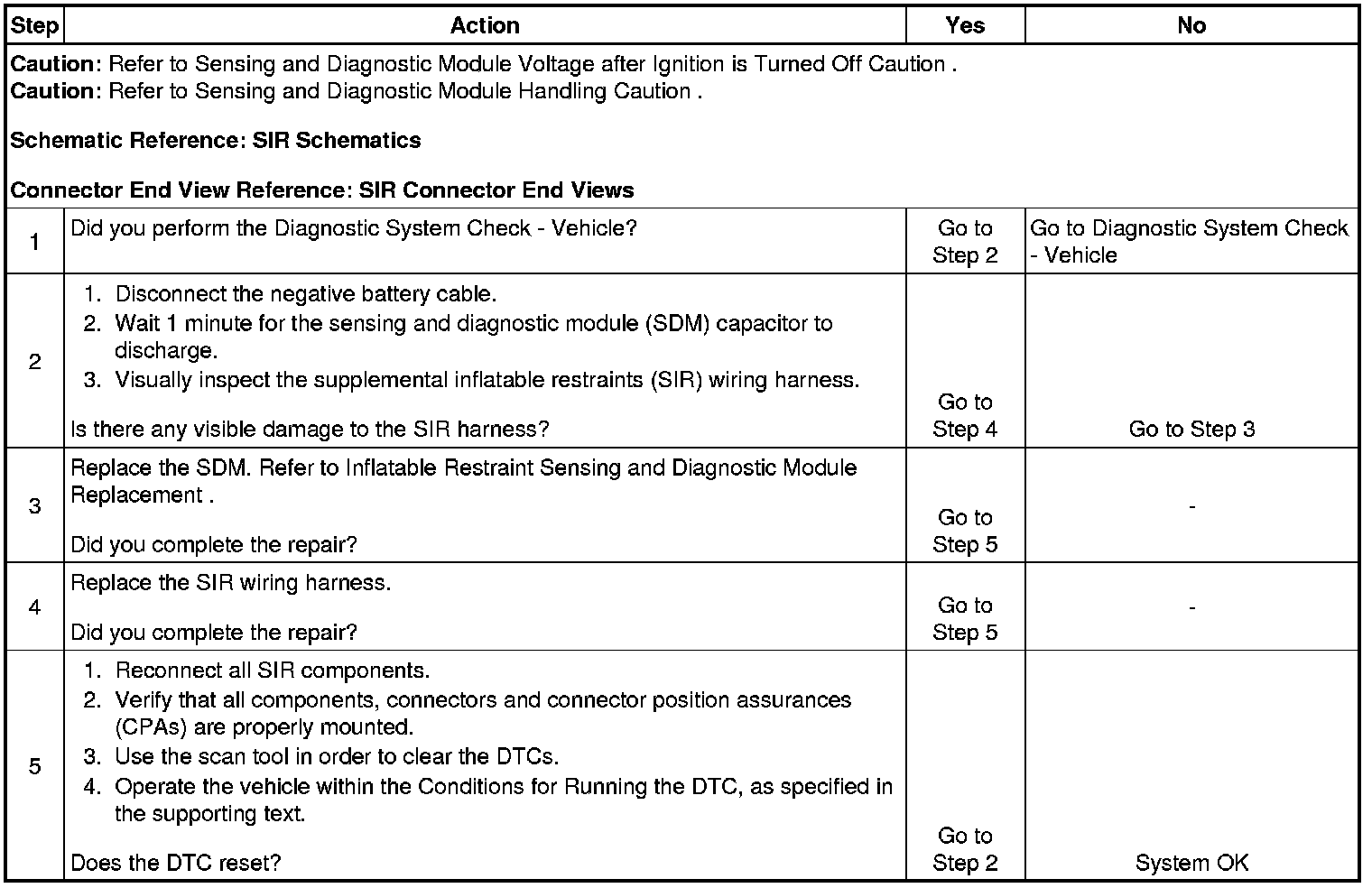

This diagnostic procedure supports the following DTC:

DTC 038

Conditions for Running the DTC

Ignition voltage is within the normal operating voltage range.

Conditions for Setting the DTC

The count of the belt pretensioner and side impact module explosion is over 5 in the SDM.

Action Taken When the DTC Sets

The SDM commands the AIR BAG indicator ON.

Conditions for Clearing the DTC

The condition responsible for setting the DTC no longer exists and the scan tool Clear DTCs function is used.
