DTC 004

DTC 004

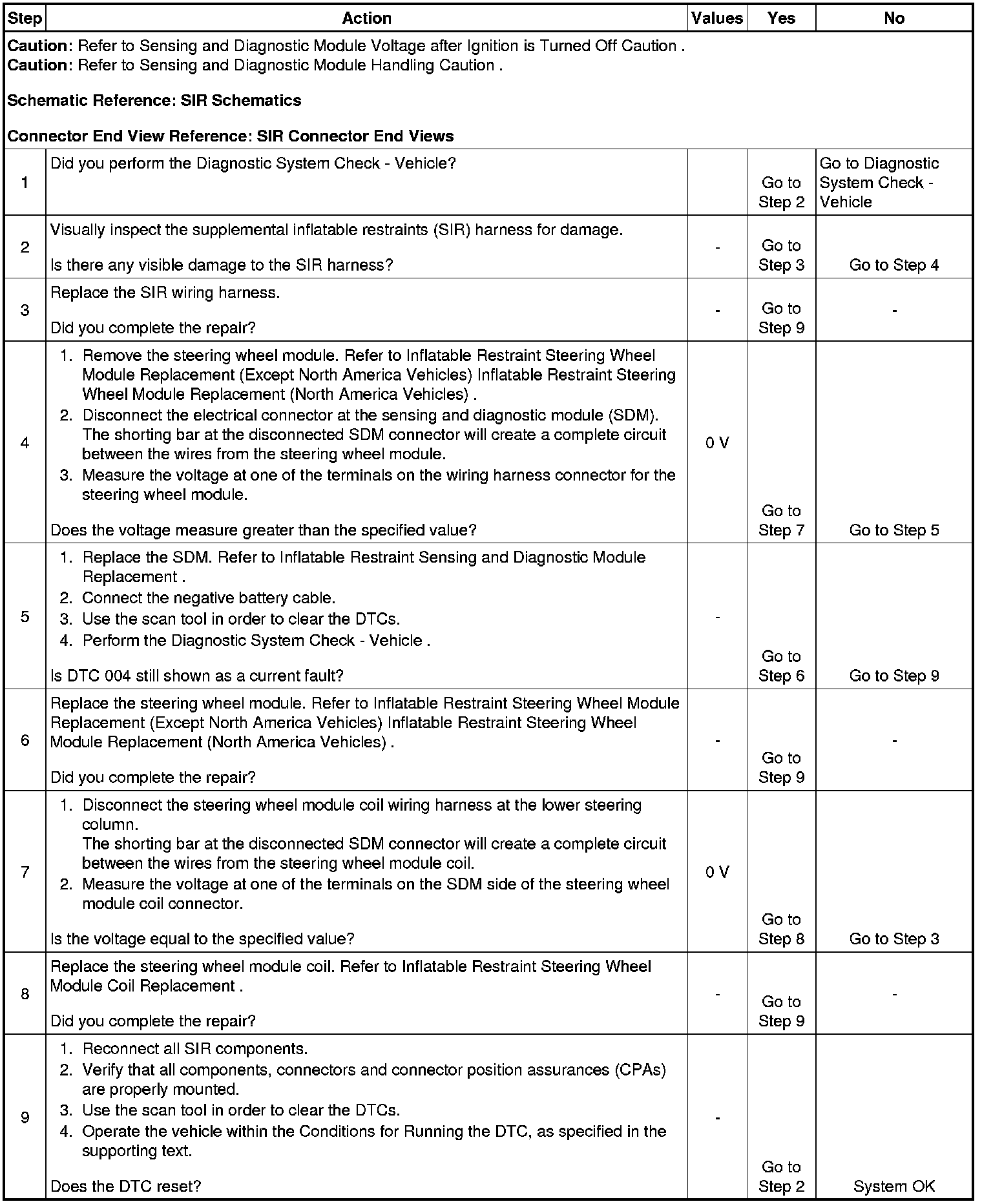

Circuit Description

When the ignition switch is turned to ON, the sensing and diagnostic module (SDM) will perform a turn-on test to diagnose critical malfunctions within the SDM itself.

Upon passing this test, ignition and deployment loop voltages are measured to ensure that they are within their normal voltage ranges. The SDM monitors the voltages at the driver low and the passenger low to detect shorts to ground or voltage in the deployment loops.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC 004 Driver Air Bag Deployment Loop Short To Voltage

Conditions for Running the DTC

Ignition voltage is within the normal operating voltage range.

Conditions for Setting the DTC

* The air bag wiring of the driver high is shorted to battery wiring.
* The air bag wiring of the driver low is shorted to battery wiring.

Action Taken When the DTC Sets

The SDM commands the AIR BAG indicator ON.

Conditions for Clearing the DTC

The condition responsible for setting the DTC no longer exists and the scan tool Clear DTCs function is used.
