B1404

DTC B1404

Circuit Description

When the ignition switch is turned to ON, the sensing and diagnostic module (SDM) will perform turn-on test to diagnose critical malfunctions within SDM itself.

Upon passing these test ignition and deployment loop voltages are measured to ensure that they are within their normal voltage ranges. The SDM monitors the voltages at the driver low and the passenger low to detect shorts to ground or voltage in the deployment loops.

DTC Descriptor

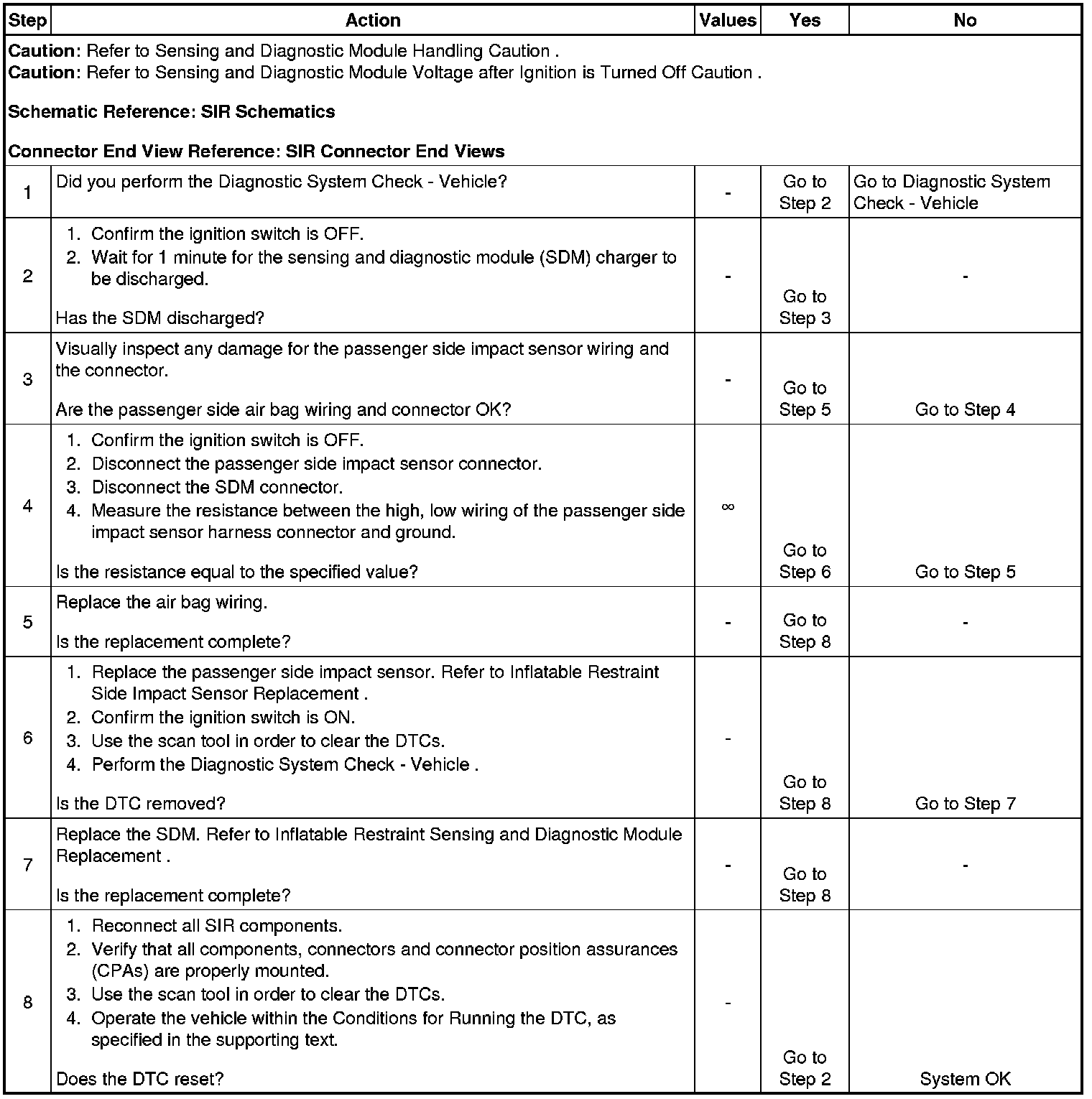

This diagnostic procedure supports the following DTC:

DTC B1404 RF Side Impact Sensor Short to Ground

Conditions for Running the DTC

Ignition voltage is within the normal operating voltage range.

Conditions for Setting the DTC

* The side impact sensor wiring of the passenger high is shorted to ground.
* The side impact sensor wiring of the passenger low is shorted to ground.

Action Taken When the DTC Sets

The SDM commands the AIR BAG indicator ON.

Conditions for Clearing the DTC

The condition responsible for setting the DTC no longer exists and the scan tool Clear DTCs function is used.
