Home >> Chevrolet >> 2007 >> Cobalt L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Fuel Delivery and Air Induction >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations

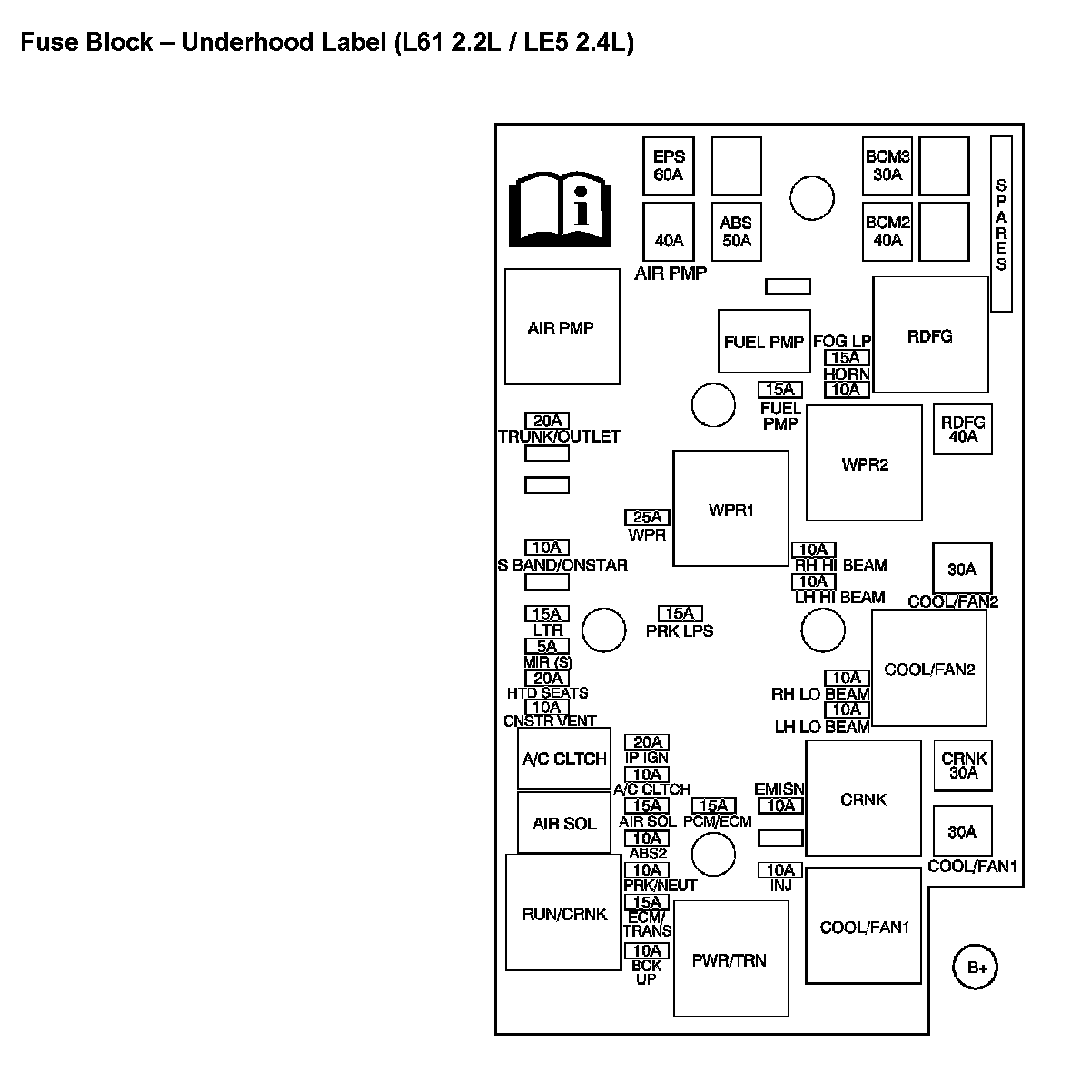

Fuse Block - Underhood Label (With RPO Code L61 2.2L / LE5 2.4L):
