Drive Belt Tensioner: Service and Repair

Drive Belt Tensioner Replacement

Removal Procedure




1. Remove the drive belt.
2. Remove the drive belt tensioner bolt.
3. Remove the drive belt tensioner.

Installation Procedure

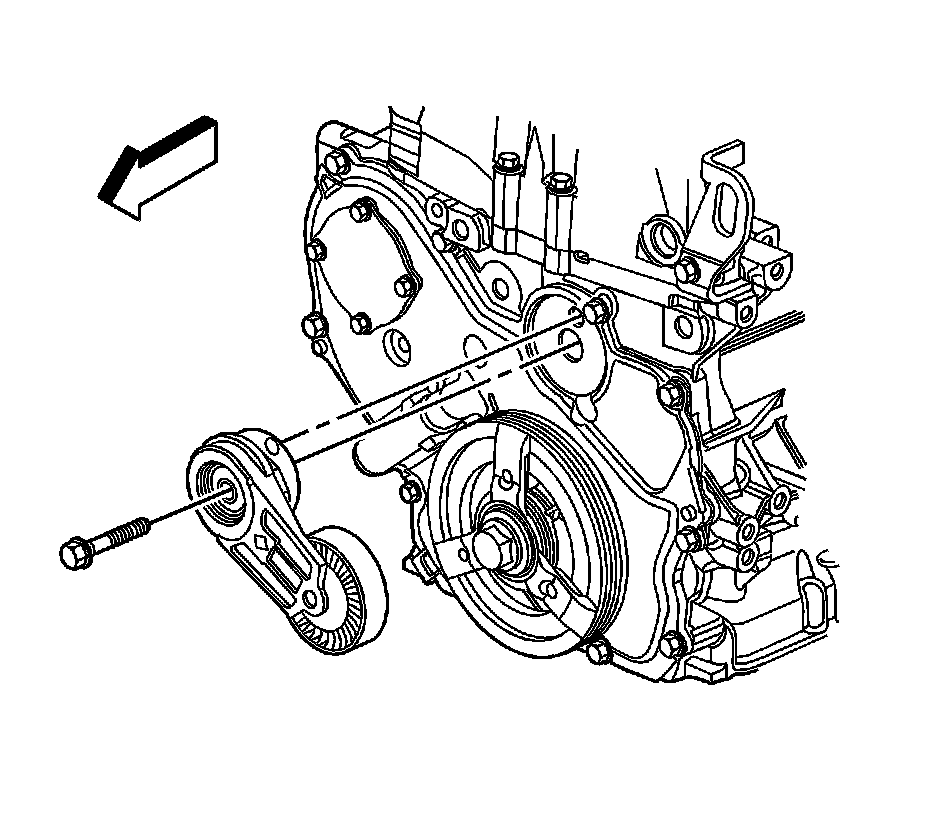

1. Position the drive belt tensioner.

Notice: Refer to Fastener Notice.

2. Install the drive belt tensioner bolt.

Tighten the bolt to 45 N.m (33 lb ft).

3. Install the drive belt.
