Engine Control Module





Engine Control Module

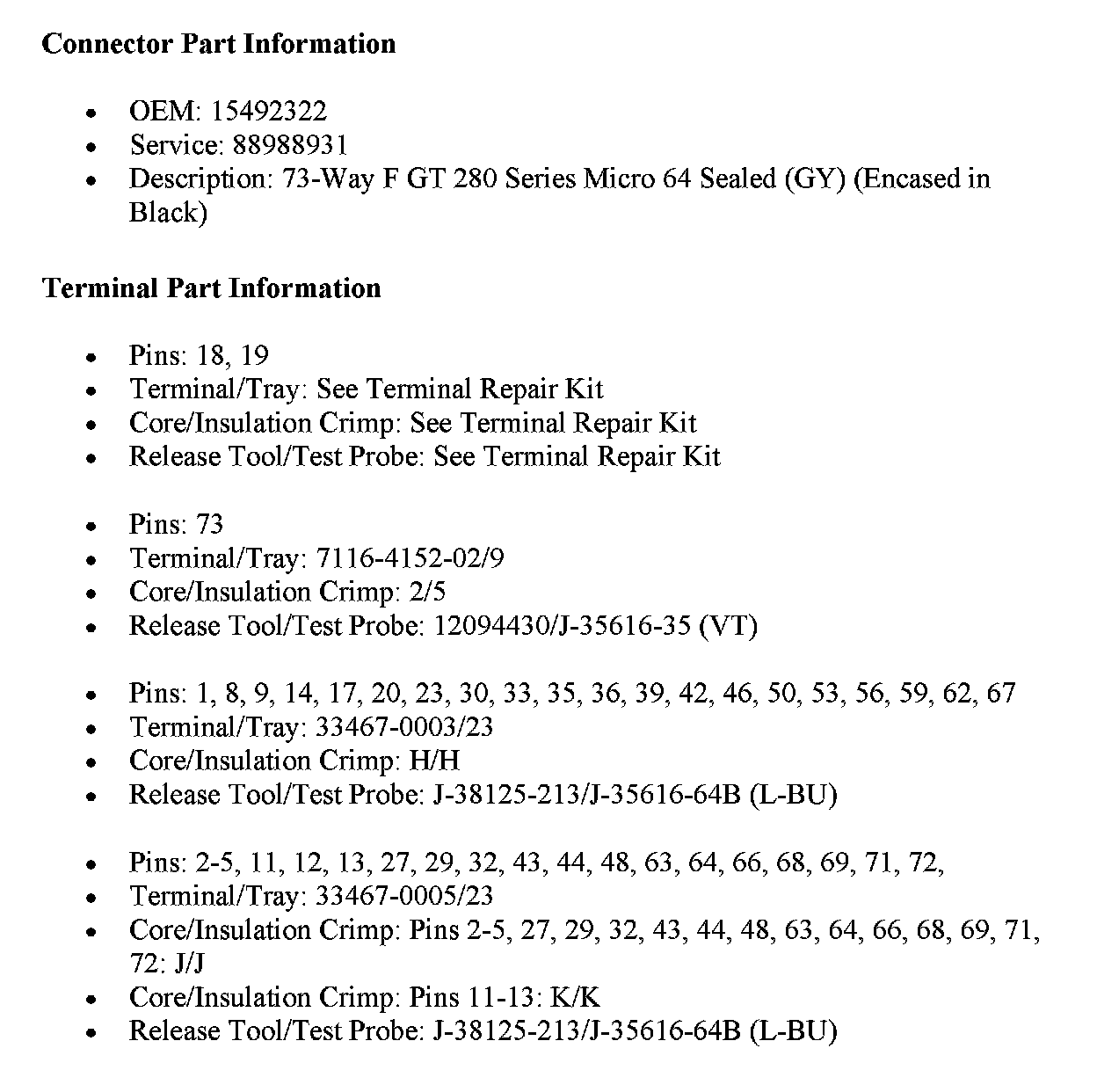

Engine Control Module (ECM) C1














Engine Control Module (ECM) C2


















Engine Control Module (ECM) C3
