Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

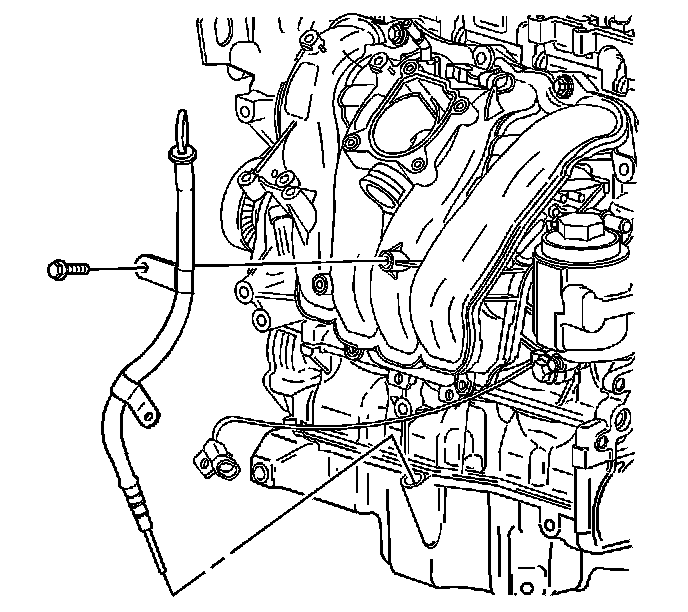

Oil Level Indicator and Tube Replacement

Removal Procedure




1. Remove the air cleaner outlet resonator.
2. Unclip the electrical wiring harness from the oil level indicator tube.
3. Remove the oil level indicator tube bolt.
4. Remove the oil level indicator tube.
5. Remove the oil level indicator tube seal.

Installation Procedure




1. Install the oil level indicator tube seal.
2. Install the oil level indicator tube.
3. Clip the electrical wiring harness to the oil level indicator tube.

Notice: Refer to Fastener Notice.

4. Install the oil level indicator tube bolt.

Tighten the oil level indicator tube bolt to 10 N.m (89 lb in).

5. Install the air cleaner outlet resonator.
